3 Axis CNC Controller Kit Nema 34 86mm Stepper Motor 4.5Nm 640oz.in 2-Phase 6A, Step Motor Driver, 400W 60V Power Supply, Mach3 Control Card for Machine Engraving Router

Price: $299.00
(as of Sep 24, 2025 19:15:24 UTC – Details)

Product description

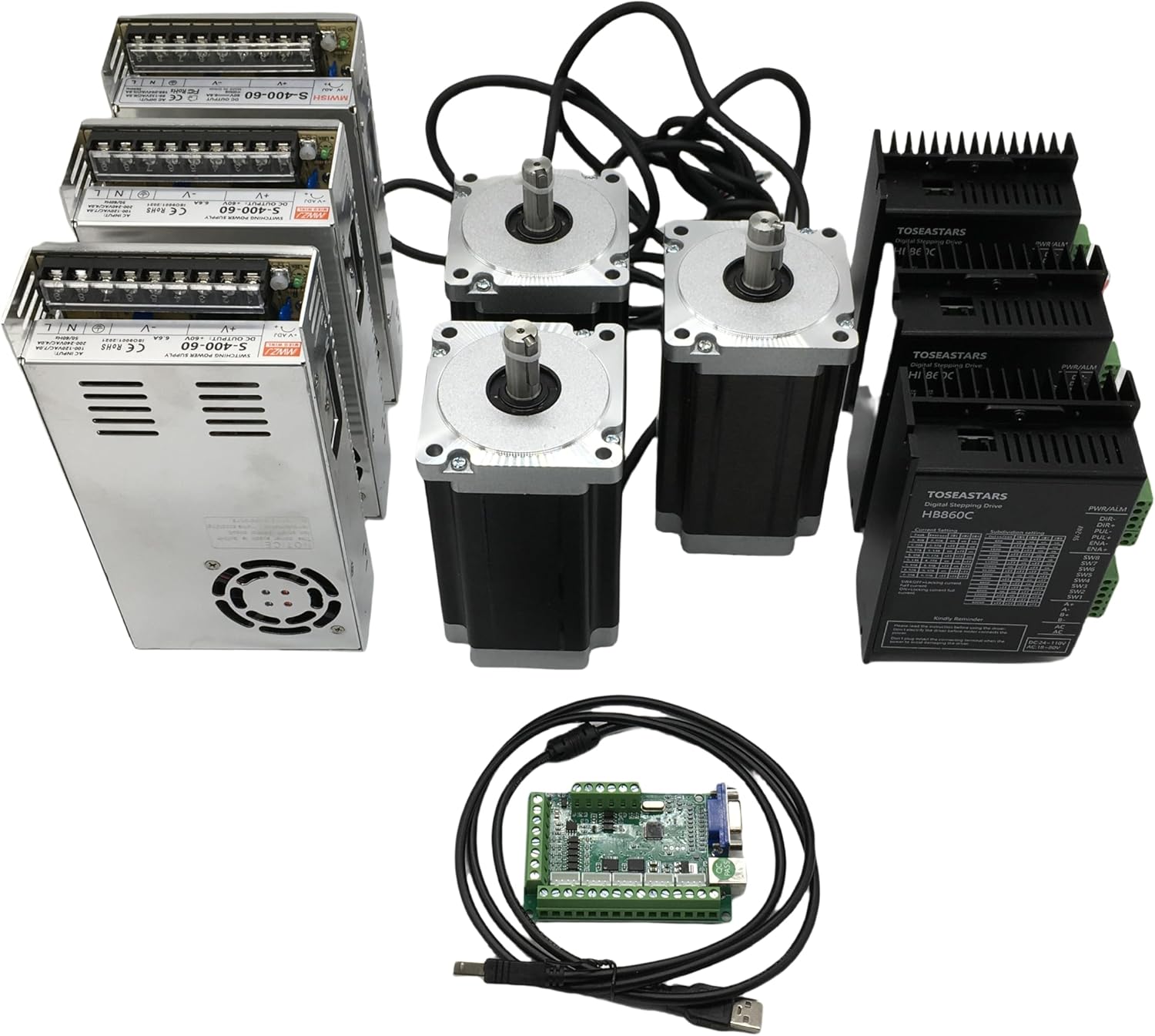

Package List

3 X Nema34 4.5NM/8.5NM/12NM Stepper Motor

3 X HB860C Driver

3 X 400W-60V power supply

1 X Mach3 Control Card

Specifications

The HB860C is a stepper driver developed with advanced DSP control algorithm based on the latest motion control technology. It has achieved a unique level of system smoothness, providing optimal torque and nulls mid-range instability.

Compared with traditional analog drives, HB860C can drive a stepper motor at much lower noise, lower heating, and smoother movement.

Its unique features make HB860C an ideal choice for high requirement applications. It is highly recommended to work as nema 34 driver.

Features Step & direction (PUL/DIR) control Input voltage AC18V-80V/ DC24-110V 200 KHz max pulse input frequency 16 microstep resolutions of 400-51200 8 output current settings of 2.4-7.2A

Power Supply Parameter:

Model: S-400-60

Rated Load: 400W (Max Load)

Input Voltage: AC100-120V/200-245VAC 50/60Hz

Output Voltage:DC60V (Constant Voltage)

Output Current:6.6A

Conversion Efficiency:more than 80%

Working temperature:-30~+50°C

IP code:IP20

Cooling type:Fan Cooling (Fan Work With a little noise)

3 Pcs Nema 23 56mm Stepper Motor: 3Nm/300Ncm 425oz.in holding torque and low noise, nema23 step motor size 86x86x80mm/3.38×3.38×3.14 inch. Current: 6A; 1.8 deg. step angle(200 steps/rev); 2 phase 4-lead wires; 14mm key-way shaft, phase inductance 5.6±20%(mH) & resistance 0.75±10% ohms(Ω).

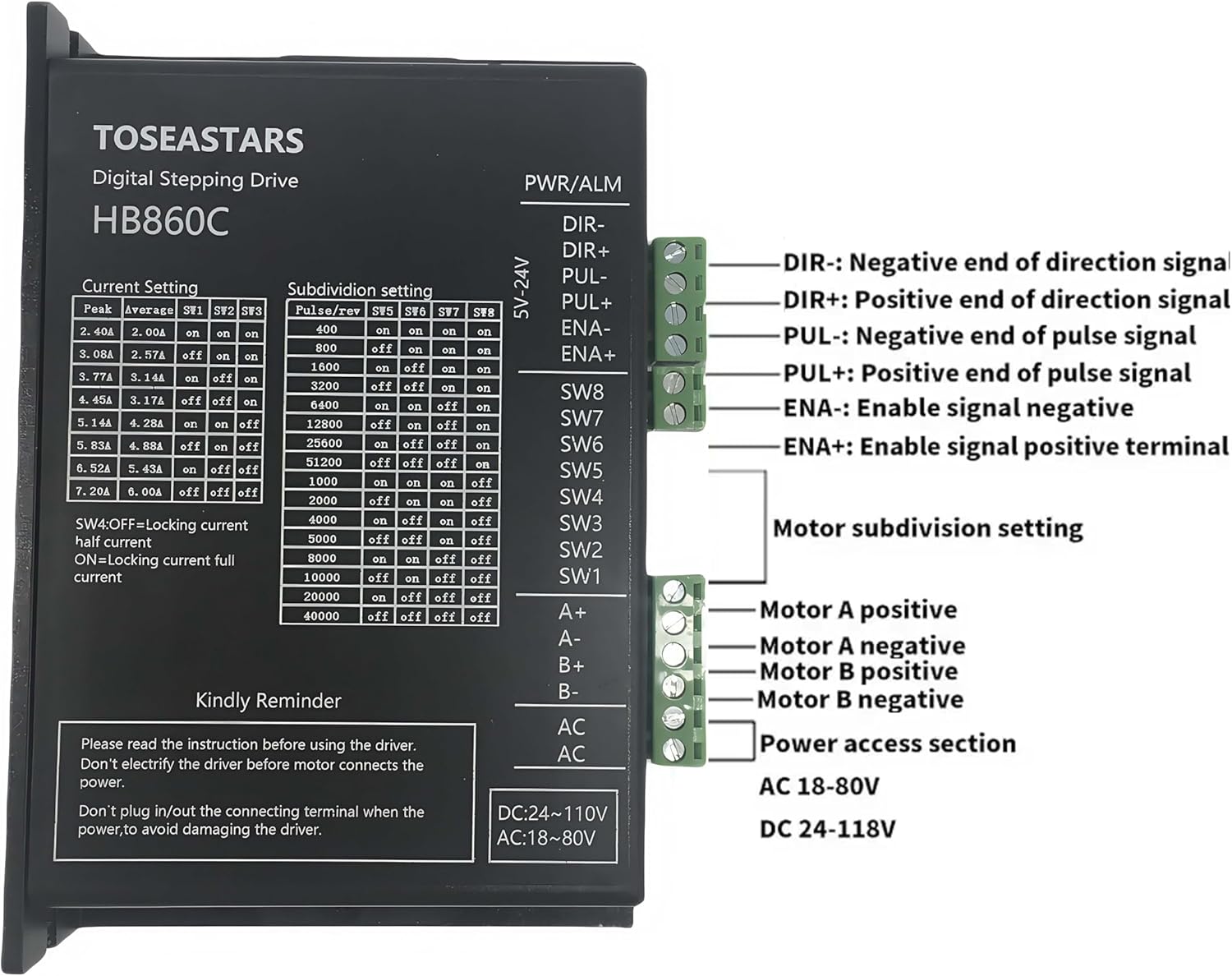

3 Pcs HB860C Stepper Motor Driver: HB860C driver Voltage: DC 24-110V, AC 18-80V, which is suitable for all two-phase hybrid nema34 stepping motors. There are 16 kinds of micro steps, and the output current has 8 gears. Subdivision: 400-51200 steps/turn.

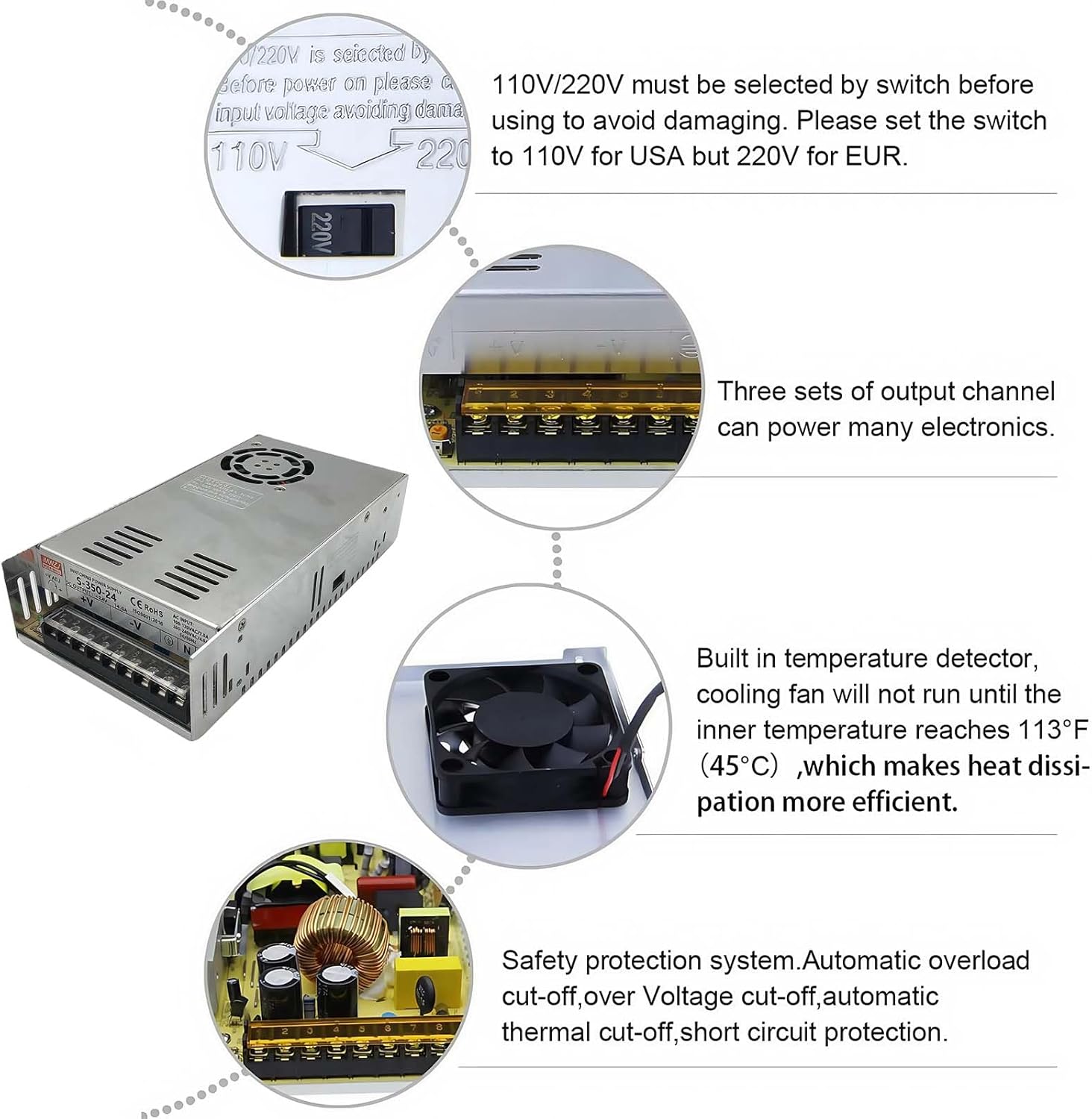

3 Pcs Stable output 400W 60V DC power supply: Over-current, over-voltage and overload protection, power supply stable power supply, electrical energy conversion rate of up to 90%, higher efficiency. Shell hollow design, heat dissipation ability faster and stronger, more durable performance. AC input voltage range: 110V or 220V AC; selected by switch to choose input voltage.

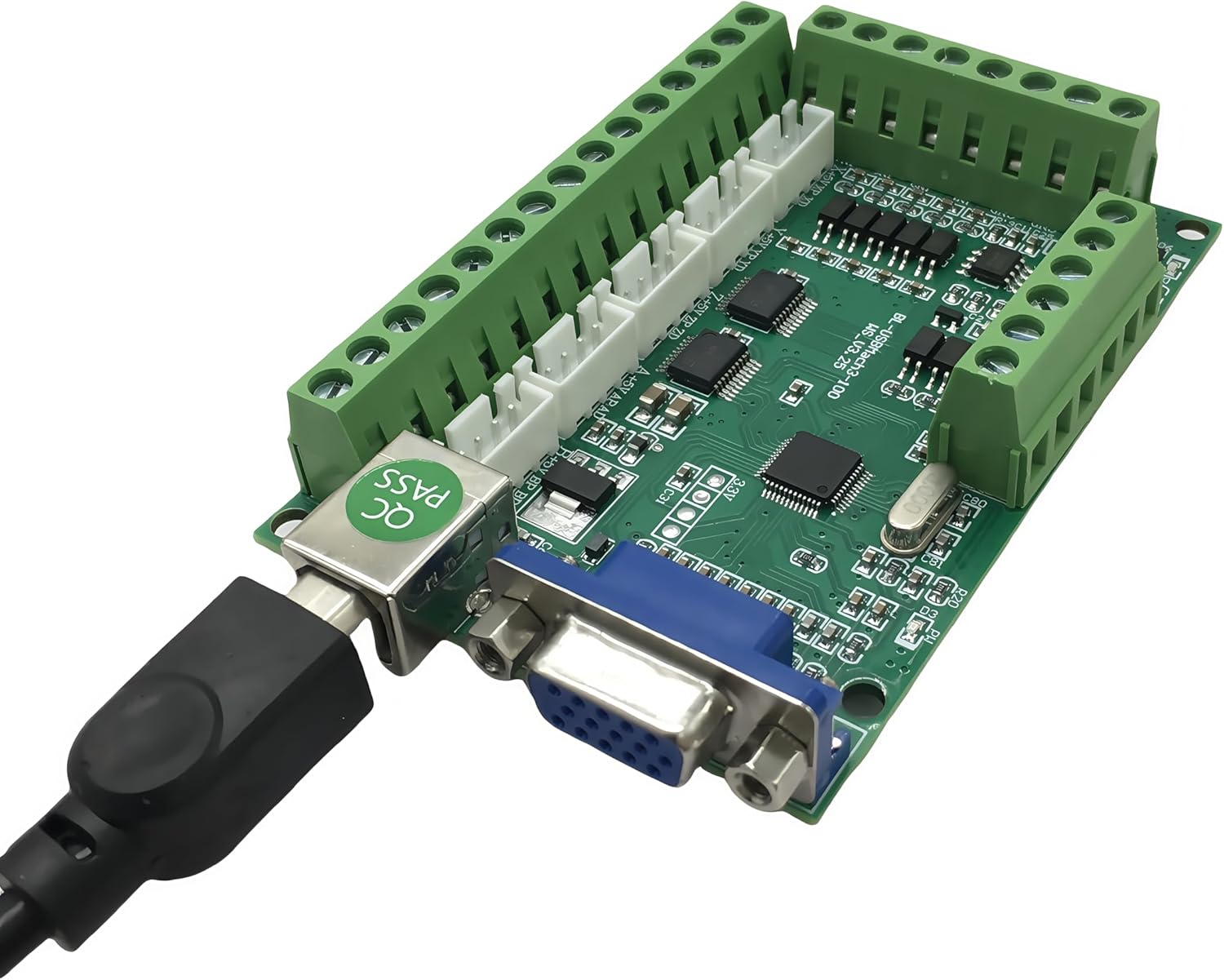

Functions of the Mach3 Control Board: It supports 5-axis linkage control at most for controlling the spindle starts, forward rotating and reverse rotating, pumps or other device. Strong anti-interference and high reliability. As long as Mach3 is running, the control card can be used without installing any drivers.
Professional CNC Controller Kit: This is a professional 3d printer DIY kit made of high premium materials. It’s a DIY kit with tons of possibilities with multiple types of modules or components you need. Applications: Semiconductor Equipment, Milling Machine, Engraver Machine , CNC Routers , 3D printers, medical equipment, industrial equipment, laser machine, automation devices,etc.
