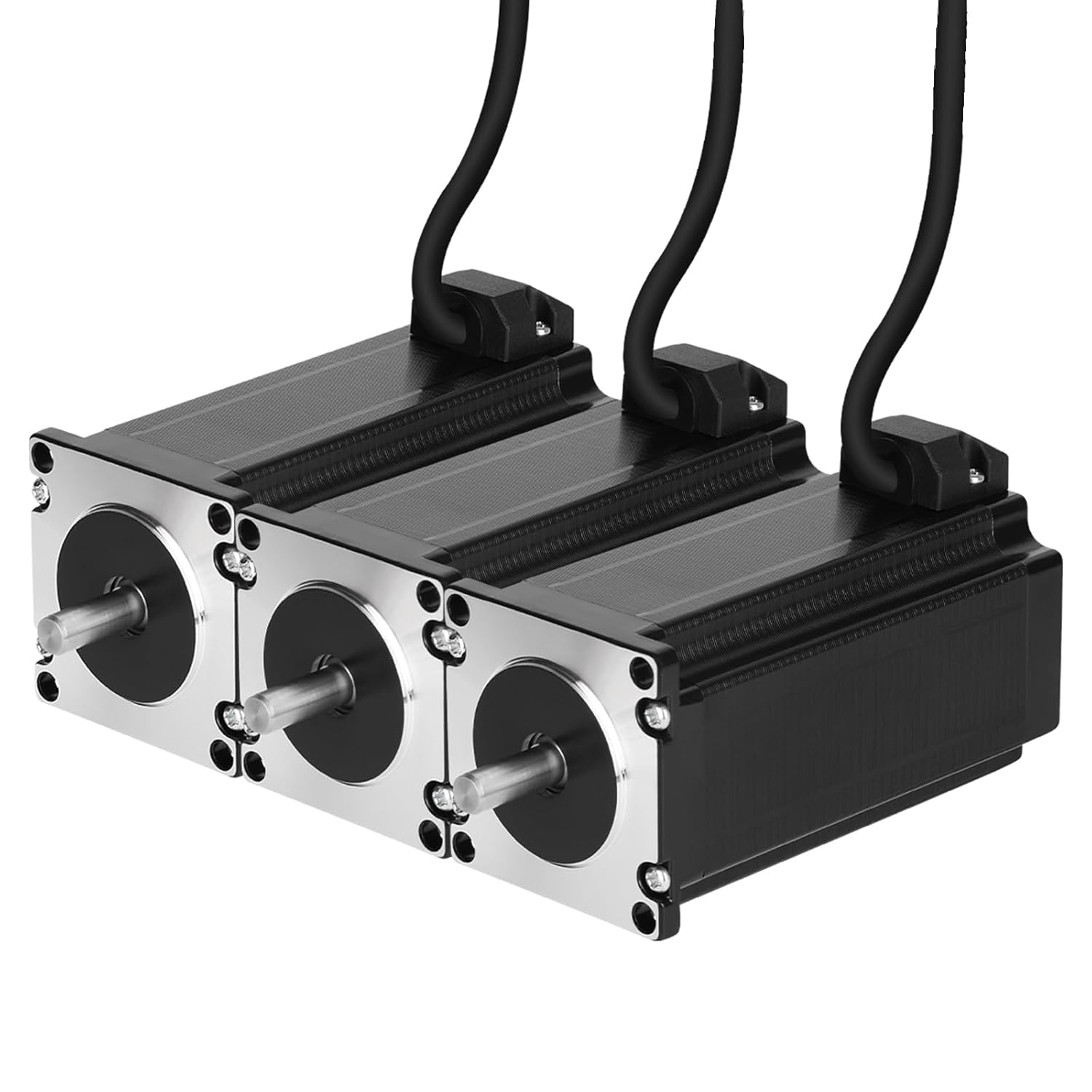

3PCS Nema 23 Stepper Motor 3300mNm(467.31oz.in) Bipolar 4.2A High Torque 110MMx57 Motors for 3D Printer CNC Milling Engraving Machine Laser Engraving 1.8 Deg 2 Phase 4 Lead Step Motor

Price: $99.99 - $89.99
(as of Sep 25, 2025 19:32:40 UTC – Details)

Product description

NEMA 23 STEPPER MOTOR COMPATIBLE WITH 3D PRINTER/CNC MACHINE

Experience powerful performance with the Nema 23 stepper motor, delivering exceptional torque for demanding applications. Say goodbye to disruptive sounds and vibrations with the Nema 23 motors, designed to operate quietly and efficiently for a harmonious working environment.

The video showcases the product in use.The video guides you through product setup.The video compares multiple products.The video shows the product being unpacked.

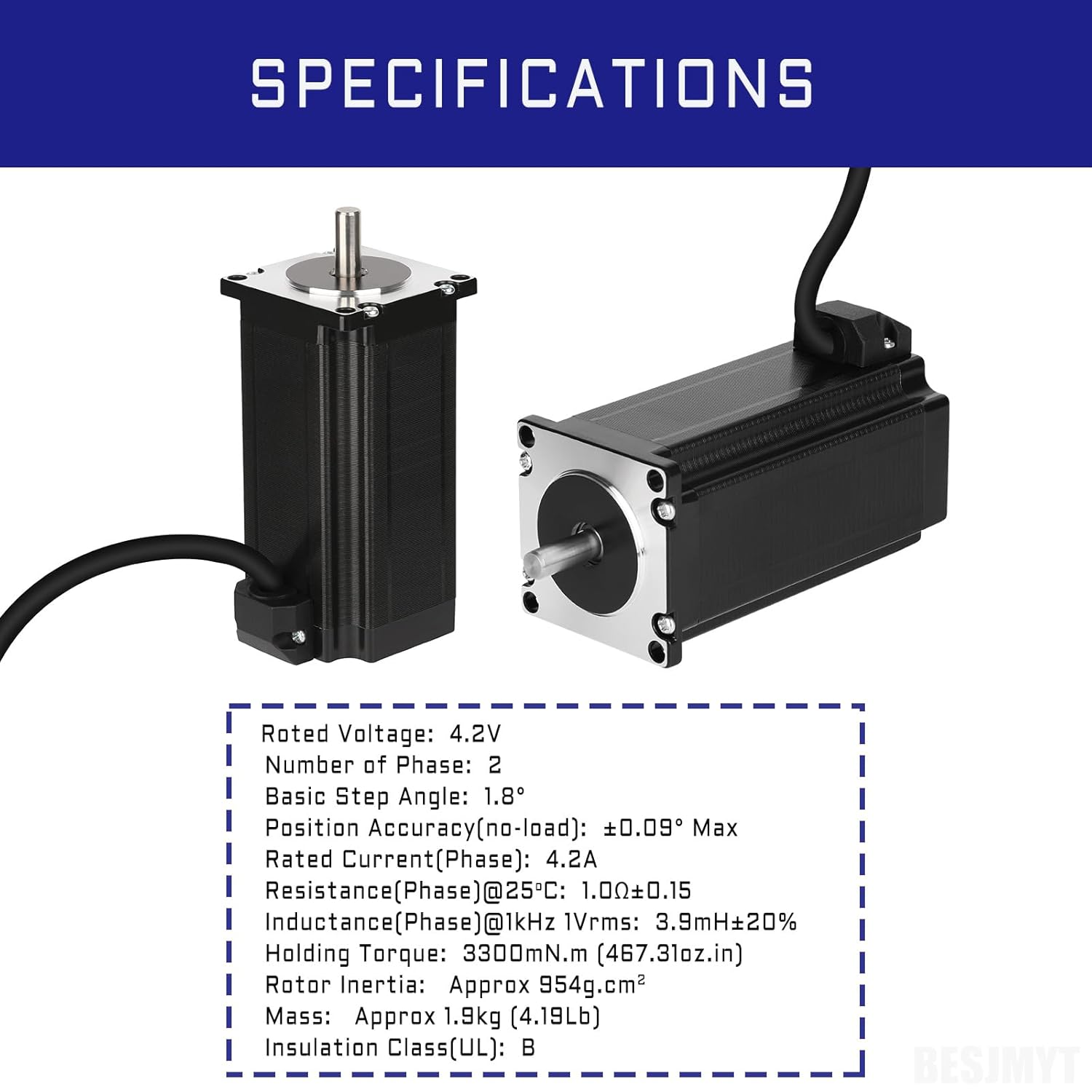

PRODUCT SPECIFICATIONS

Frame Size 57 x 57mm Body Length 110mm Shaft Diameter Φ 8mm ( D Shaft Φ 7.5mm ) Motor Type Bipolar Stepper Number of Leads 4 Step Angle 1.8 degree Rated Voltage 4.2V Rated Current 4.2A Phase Resistance 1Ω Phase Inductance 3.9mH Holding Togque 3300mNm (467.31oz.in) Rotor Inertia 954g.cm²

NEMA 23 STEPPER MOTOR

Add to Cart

Customer Reviews

4.9 out of 5 stars 11

4.9 out of 5 stars 11

4.9 out of 5 stars 11

4.9 out of 5 stars 11

4.9 out of 5 stars 11

Price

$38.99$38.99

$18.65$18.65

$27.99$27.99

—

$37.99$37.99

Holding Togque

3300mNm (467.31oz.in)

1350mNm (191.17oz.in)

2300mNm (325.70oz.in)

2500mNm (354.03oz.in)

3000mNm (424.83oz.in)

Voltage

4.2V

1.68V

2.52V

2.75V

3.78V

Rated Current

4.2A

4.2A

4.2A

5.0A

4.2A

Phase Resistance

1Ω

0.4Ω

0.6Ω

0.55Ω

0.9Ω

Weight

1.9kg

550g

1kg

1.1kg

1.5kg

Bipolar

✔

✔

✔

✔

✔

1.8 Degree

✔

✔

✔

✔

✔

What are some common applications of Nema 23 stepper motors?

They are widely used in CNC machines, 3D printers, robotics, automated assembly lines, and other industrial and consumer electronics applications. Their versatility and reliability make them suitable for both simple and complex motion control tasks.

What are the key features of a Nema 23 stepper motor?

The key features of a Nema 23 stepper motor include its compact size, high torque output, precise positioning capabilities, and compatibility with various control systems.

How does a Nema 23 stepper motor compare to other types of stepper motors in terms of performance?

Compared to smaller stepper motors like Nema 17, a Nema 23 stepper motor typically offers higher torque and can handle heavier loads.

What are some considerations for installing and maintaining a Nema 23 stepper motor?

When installing a Nema 23 stepper motor, it is important to ensure proper alignment, secure mounting, and adequate cooling to prevent overheating. Regular maintenance may include checking for signs of wear, cleaning the motor and drive system.

Product Dimensions ‏ : ‎ 2.24 x 2.24 x 4.41 inches; 11.44 Pounds
Item model number ‏ : ‎ Nema23
Date First Available ‏ : ‎ May 31, 2024
Manufacturer ‏ : ‎ BESJMYT
ASIN ‏ : ‎ B0D22D7X32
Best Sellers Rank: #132,345 in Industrial & Scientific (See Top 100 in Industrial & Scientific) #35 in 3D Printer Motors
Customer Reviews: 4.9 4.9 out of 5 stars 11 ratings var dpAcrHasRegisteredArcLinkClickAction; P.when(‘A’, ‘ready’).execute(function(A) { if (dpAcrHasRegisteredArcLinkClickAction !== true) { dpAcrHasRegisteredArcLinkClickAction = true; A.declarative( ‘acrLink-click-metrics’, ‘click’, { “allowLinkDefault”: true }, function (event) { if (window.ue) { ue.count(“acrLinkClickCount”, (ue.count(“acrLinkClickCount”) || 0) + 1); } } ); } }); P.when(‘A’, ‘cf’).execute(function(A) { A.declarative(‘acrStarsLink-click-metrics’, ‘click’, { “allowLinkDefault” : true }, function(event){ if(window.ue) { ue.count(“acrStarsLinkWithPopoverClickCount”, (ue.count(“acrStarsLinkWithPopoverClickCount”) || 0) + 1); } }); });

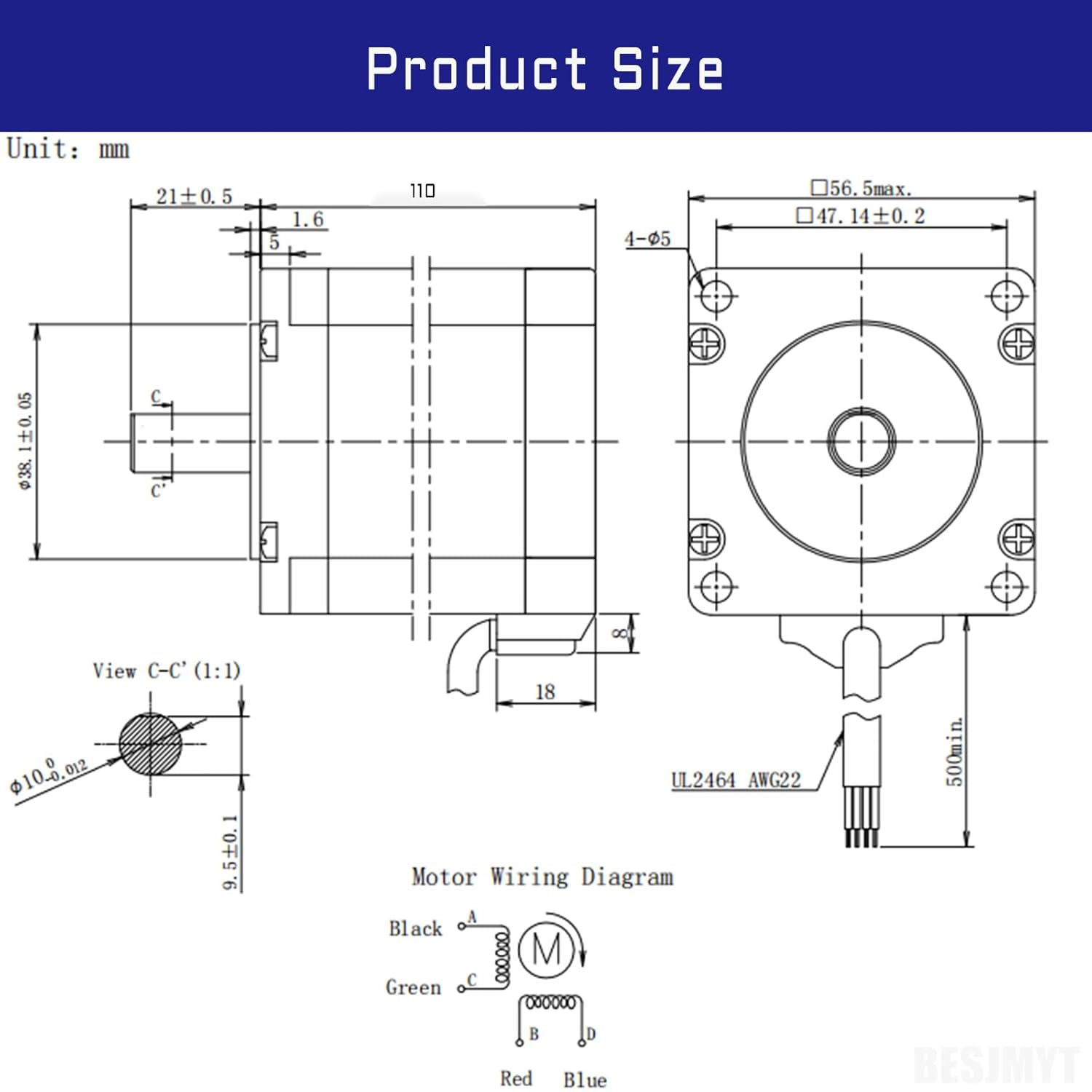

[Specifications]: Body Length: 110MM / 4.34inch; Step Angle: 1.8 degree; Shaft Diameter: Φ 10mm ( D Shaft Φ 9.5mm ), Shaft Length: 21mm, 2 phase, 4 wires: Black (A), Green (C), Red (B), Blue (D). Holding Togque: 3300mNm (467.31oz.in); Rotor Inertia: 954g.cm²; Weight: 1.9kg; Phase: 2; Rated Current: 4.2A; Phase Resistance: 1Ω; Phase Inductance: 3.9mH.

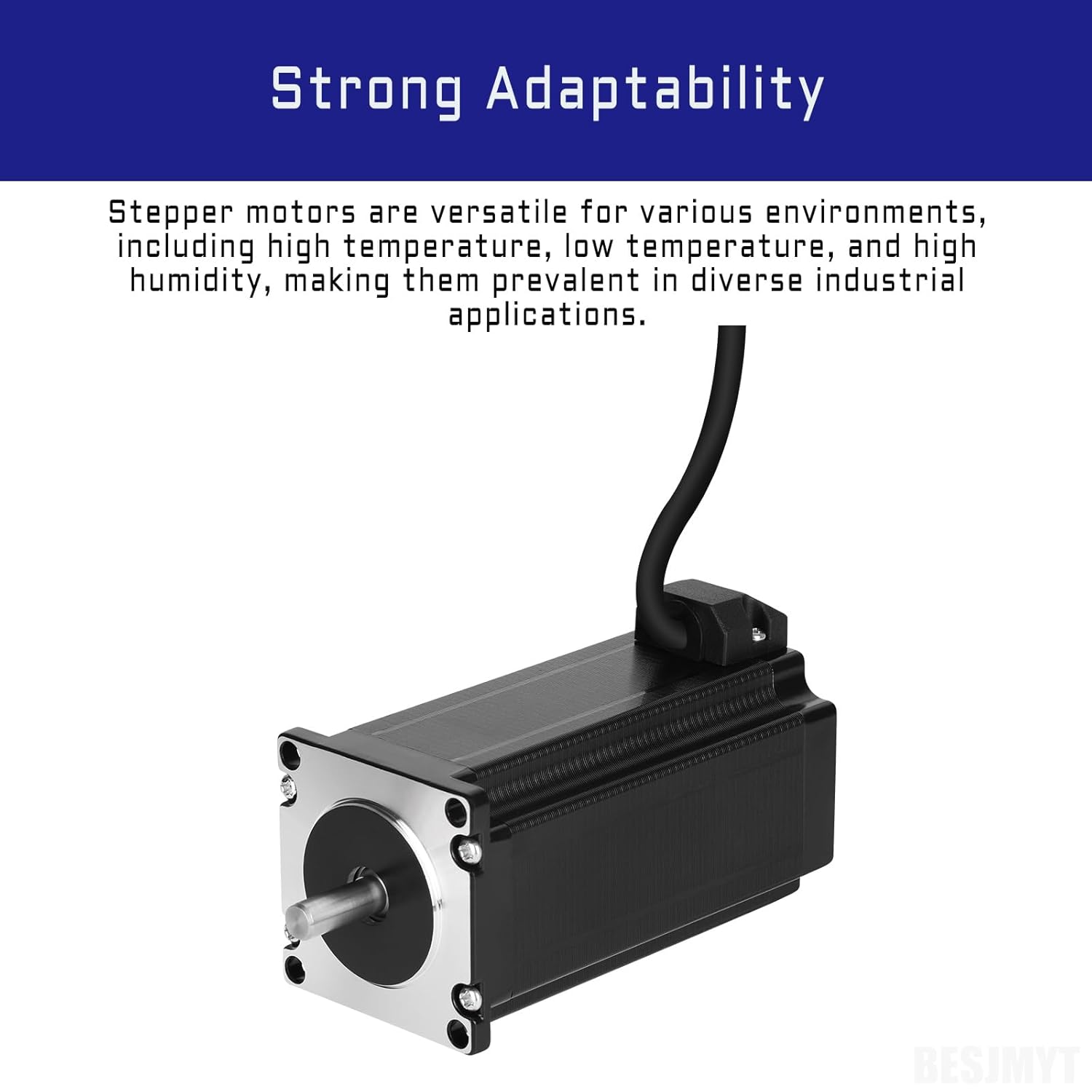

[Strong Adaptability]: Stepper motors are versatile for various environments, including high temperature, low temperature, and high humidity, making them prevalent in diverse industrial applications.
[Low Power Consumption]: At rest or at low speed, the stepper motor exhibits relatively low power consumption, contributing to energy savings and emission reduction.
[Applications]: With its compact size and high torque, the 57×110 stepper motor is extensively utilized in various demanding applications, including 3D printers, CNC machines, laser engraving, medical equipment, and other automation systems.
[Package Including]: Included in the package are 3PCS of the 110MM Nema 23 stepper motor, complete with their respective cables. Rest assured, our dedicated customer service team is here to address any concerns or questions you may have during the purchasing process.
