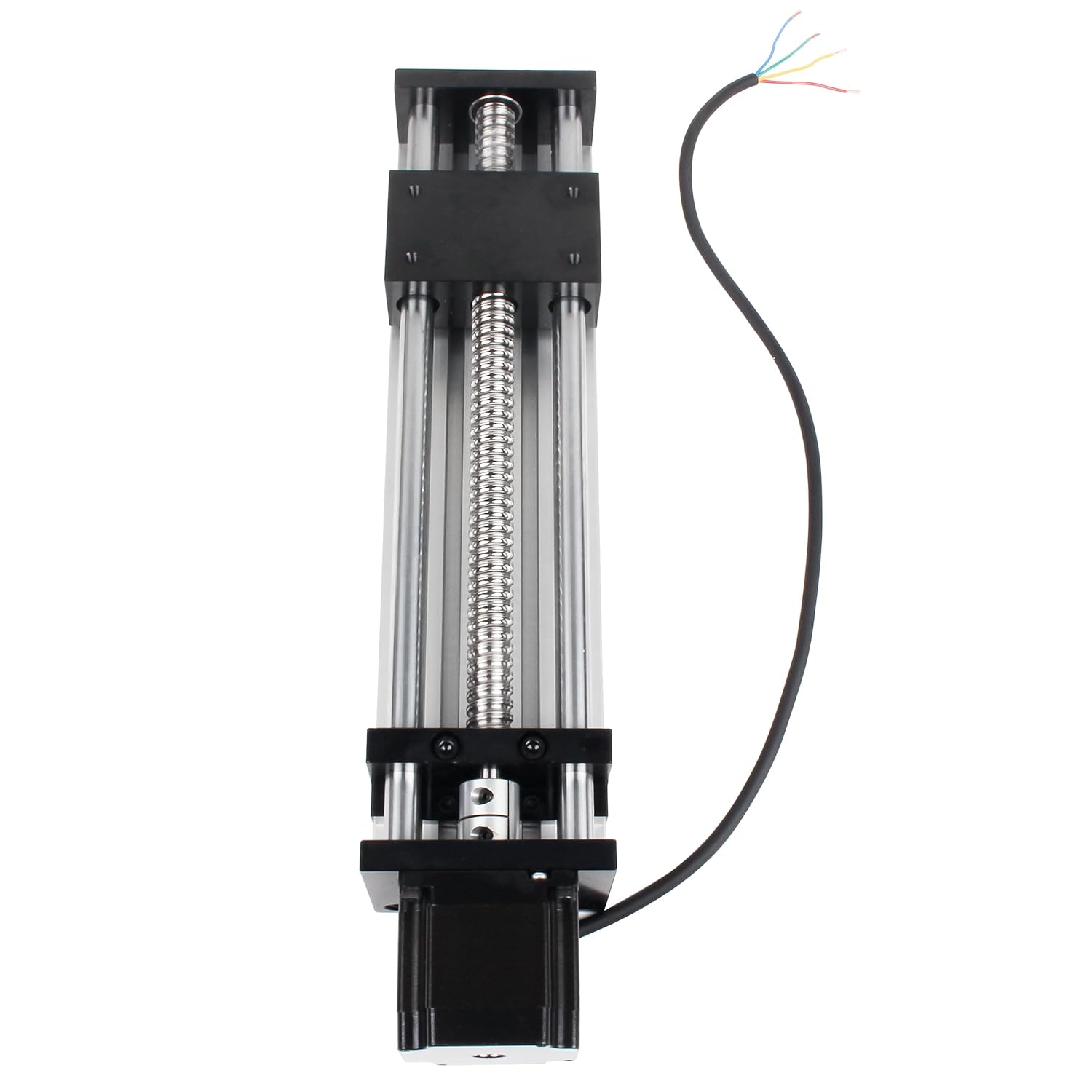

CNC Linear Stage Actuator, Double Optical Axis Linear Slide Rail 1204 Ball Screw CNC Linear Motion Rail Guide with Nema23 Stepper Motor for CNC Router Machine (300mm / 11.81″)
From the brand
About Us
YIDOFENG is mainly engaged in CNC machinery manufacturing. Our products mainly include various types of motors , Linear Stage Motion Actors, Worm Gear Gearbox, Micro CNC engraving machine and accessories,etc.
YIDOFENG always adheres to the principle of quality first and operates our CNC business,Our technical team will continue to develop more CNC products and also provide higher quality services to our customers.
CNC Touch Probe
Mini lathe accessories
Best seller
Yidofeng Motor
Worm Gear Gearbox
CNC engraving machine
DIY CNC Router Control
Linear Stage Motion Actuator
Package Dimensions : 11.42 x 6.3 x 3.15 inches; 7.43 Pounds
Date First Available : May 7, 2025
Manufacturer : KaKa-US
ASIN : B0F7R486RP
Best Sellers Rank: #378,569 in Industrial & Scientific (See Top 100 in Industrial & Scientific) #515 in Linear Motion Guides

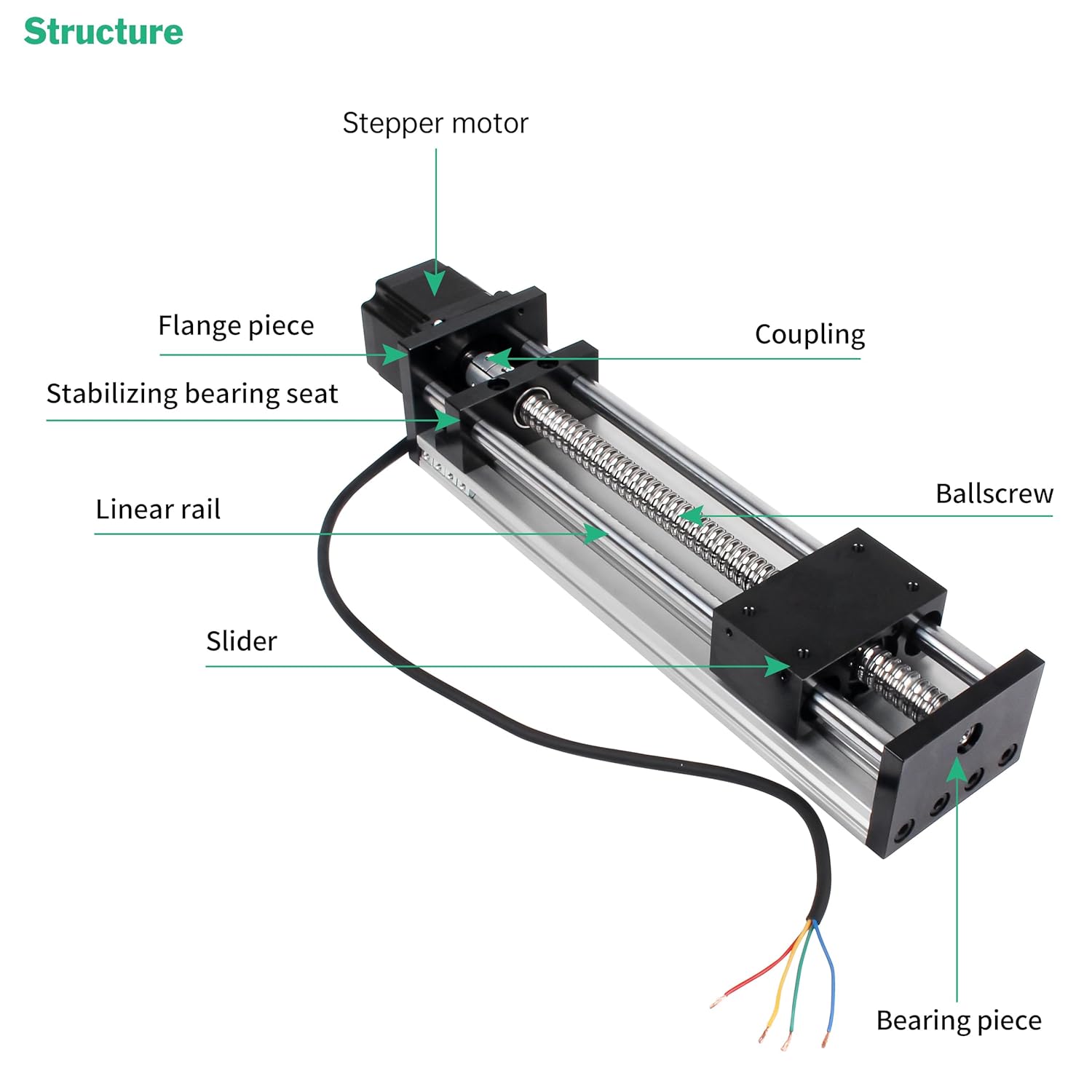

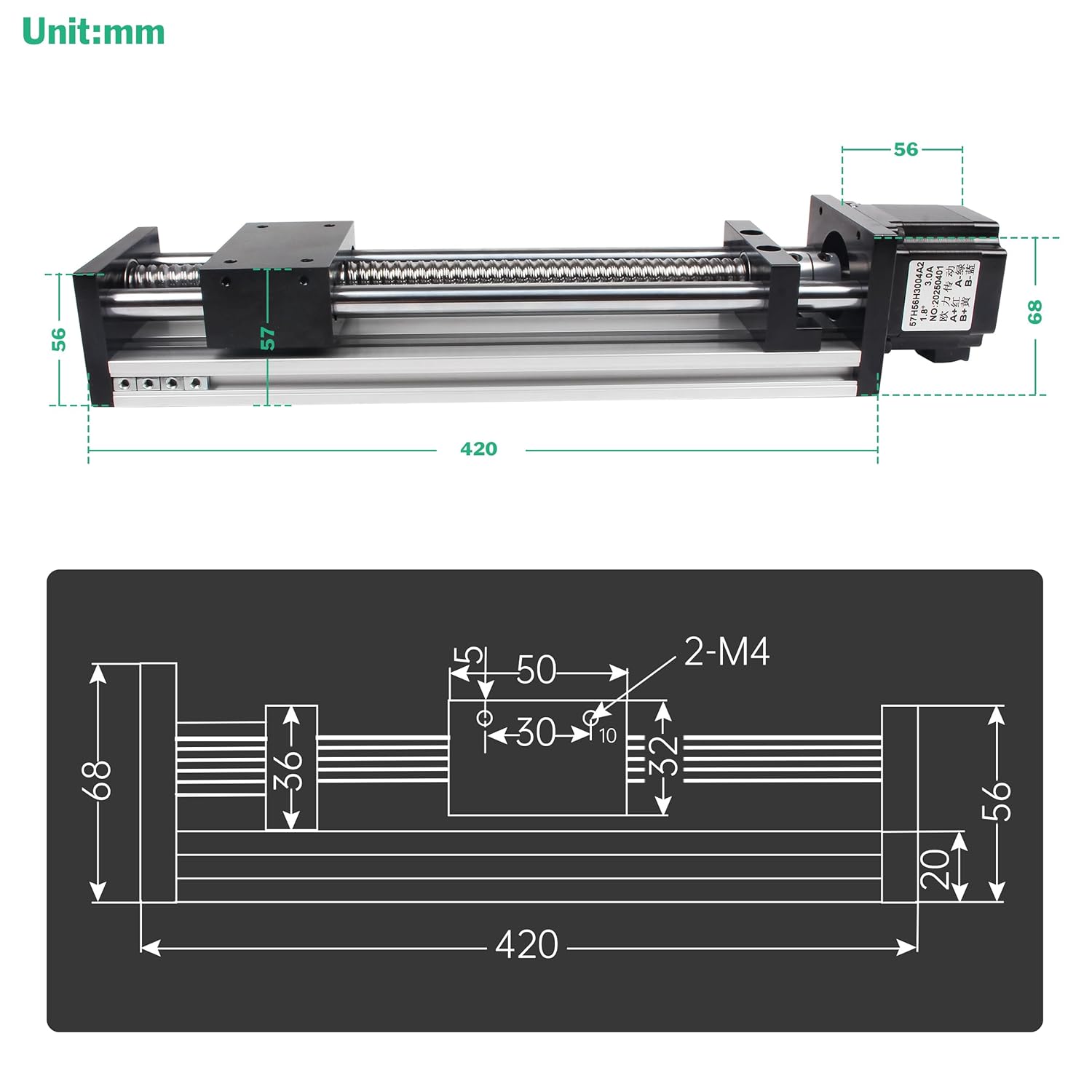

【PARAMETER】Horizontally loadable: 30kg,Vertical carrying: 15kg,Width: 80mm,Material: Aluminum Alloy,Guide rail: 20mm square linear rail,Screw: Ball screw drive 1204, diamater 12mm
【GGP1204 BALL SCREW】Using bearing steel material,high efficiency and low noise.Effective travel length: 100mm / 3.94inch. Screw precision grade: C7. Flange nut screw rod with precision up to 0.03mm/0.0012”,Lead: 4mm/0.013” (one turn of the screw rod),Diameter: 12mm/0.5”

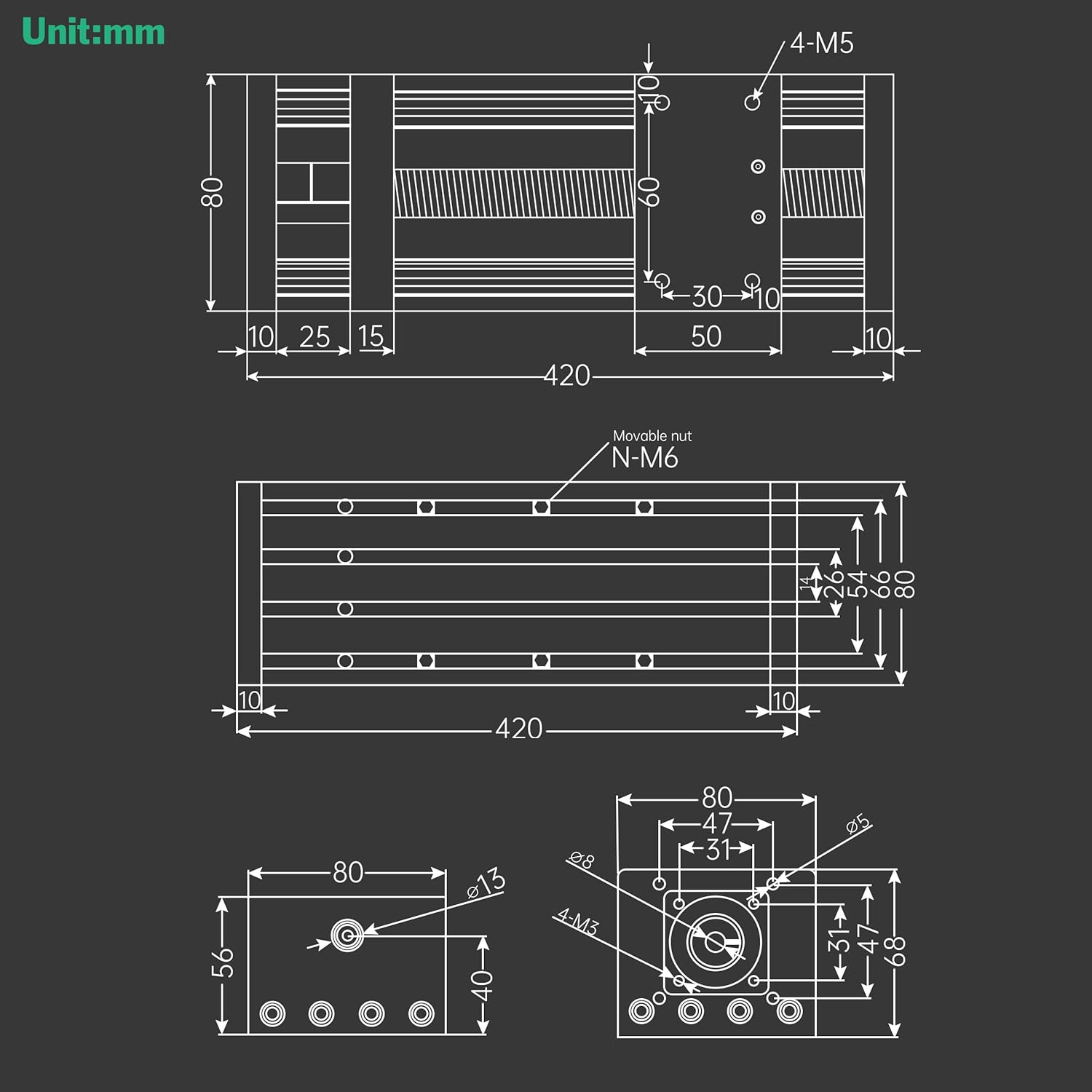

【EEASY INSTALLATION】80mm aluminum profile base, M4 movable nut at the bottom, side mounting groove for easy fixing, M3 nut can be installed with limit, easy to install. This linear stage can be used in combination with multi-axis, horizontal cross, gantry type, three-axis type, four-axis type, etc.

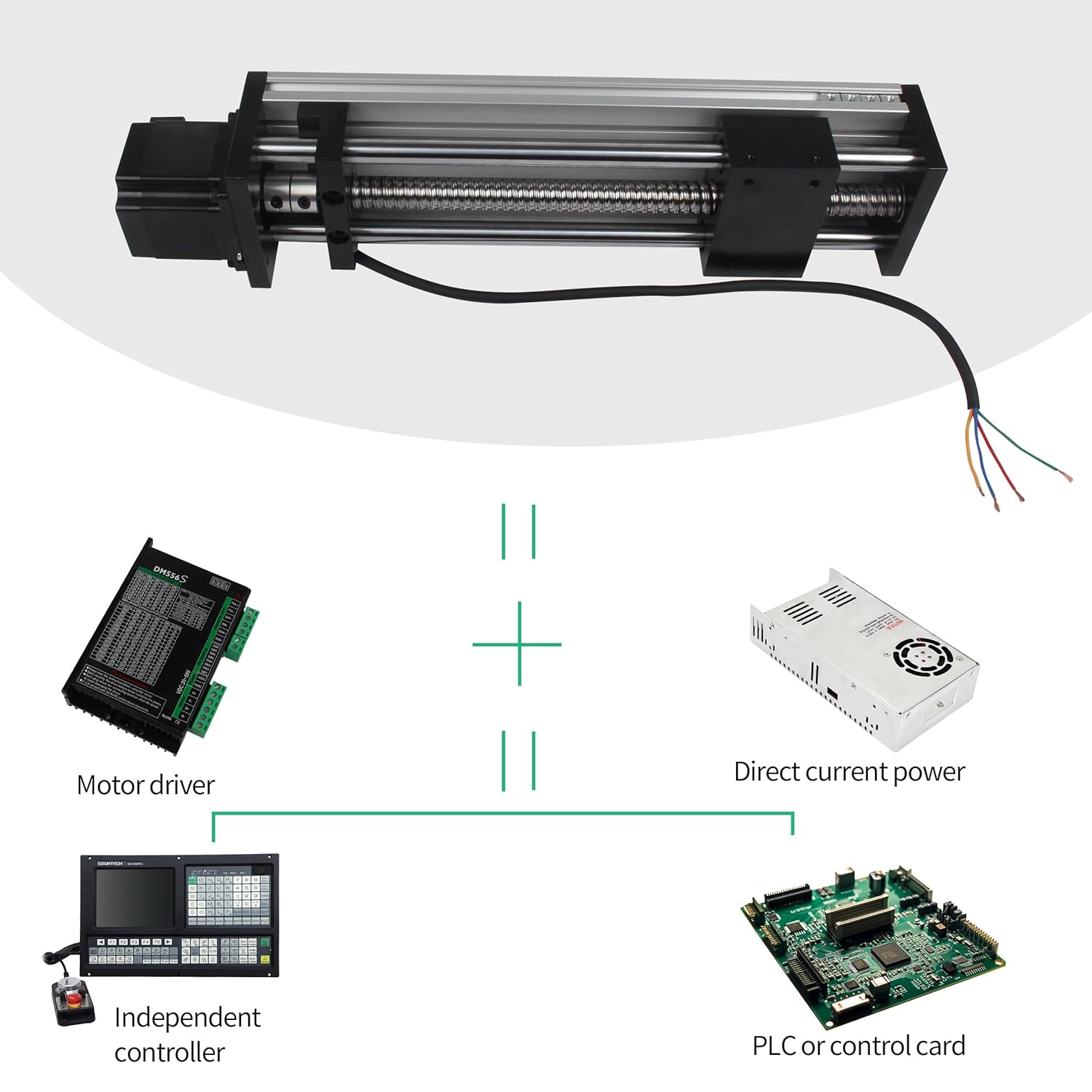

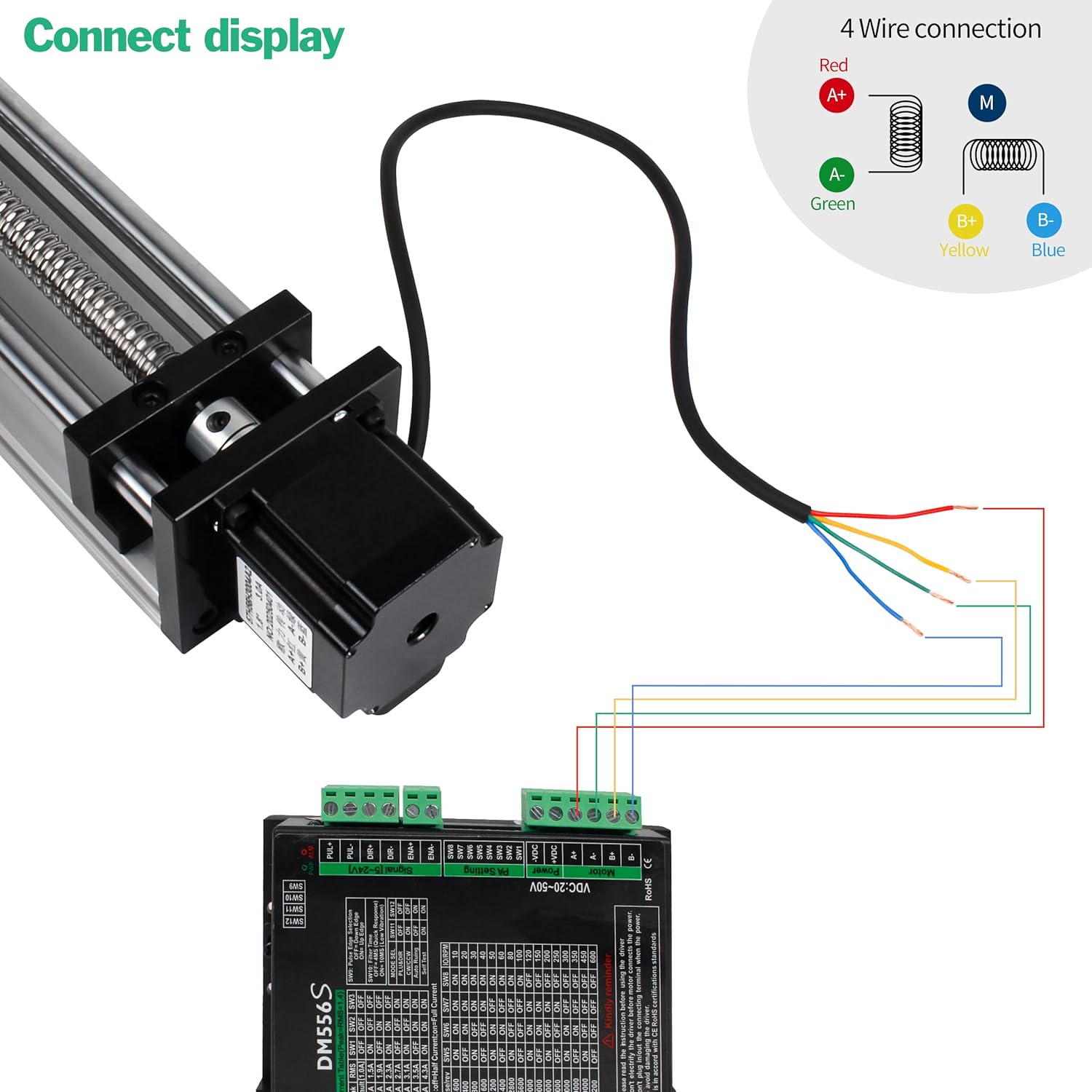

【NEMA23 STEPPER MOTOR】Motor size: 57 * 57 * 56mm; torque: 1.26N.m; current: 3A; shaft: single out shaft; voltage: 12-36V (typical value 24V); control mode: pulse control; output speed: 1000 RPM (within 600 RPM).Wiring: Red(A+), Green(A-), Yellow(B+), Blue(B-).

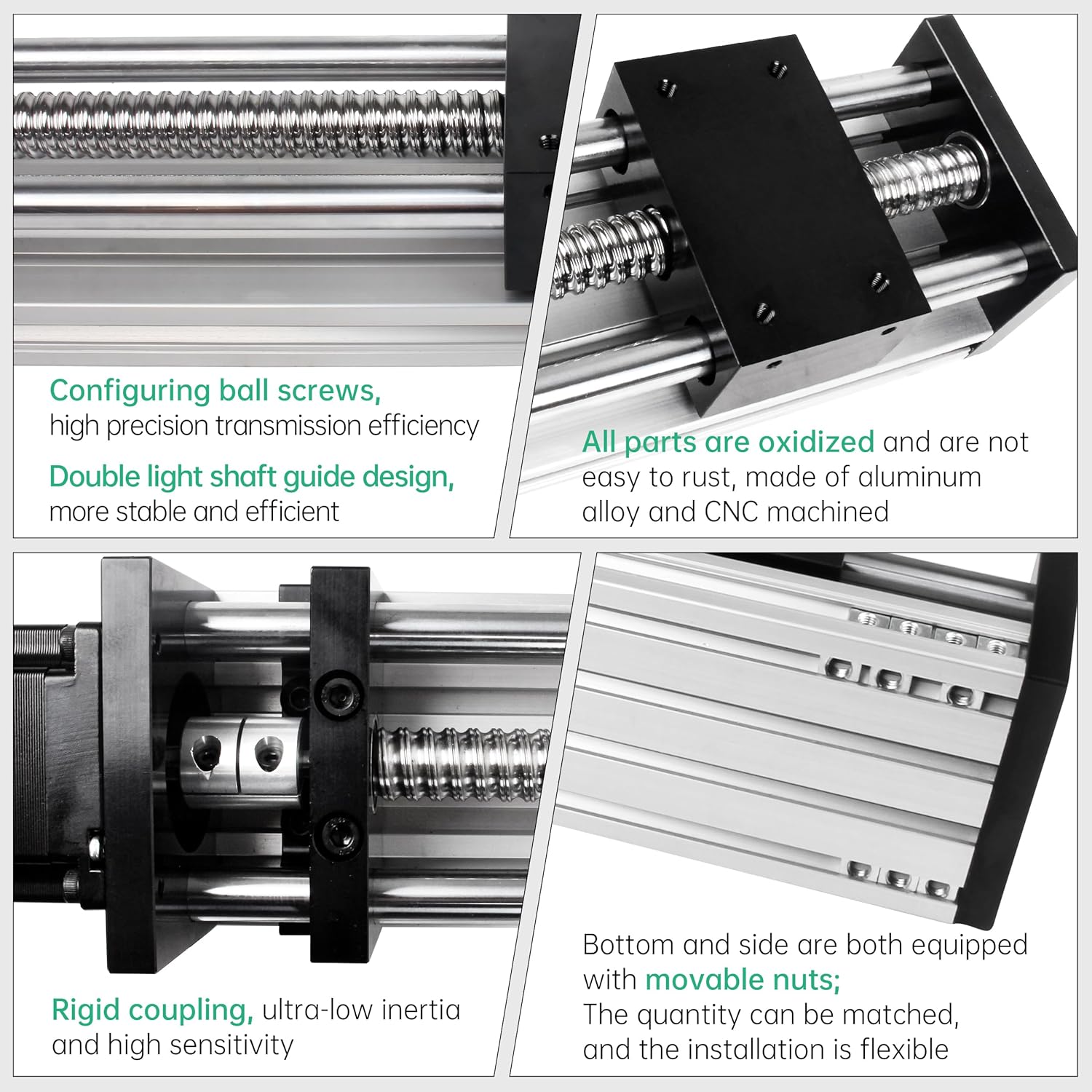

【DUAL AXIS GUIDE RAIL】 More stable and efficient, 12 chrome plated axis, linear bearing
Original price was: $100.00.$80.00Current price is: $80.00.
Price: $100.00 - $80.00
(as of Nov 22, 2025 17:26:16 UTC – Details)
