CNCTOPBAOS Integrated Nema23 2.2N.m Closed Loop Stepper Motor Driver, All-in-one 3000RPM 24-60V DC 5A 1000 Line Encoder TTL Multi-Microstep 8mm Shaft 57 Motor for CNC Machine, Industrial Automated

Price: $60.00
(as of Oct 24, 2025 19:30:15 UTC – Details)

Product description

Package include

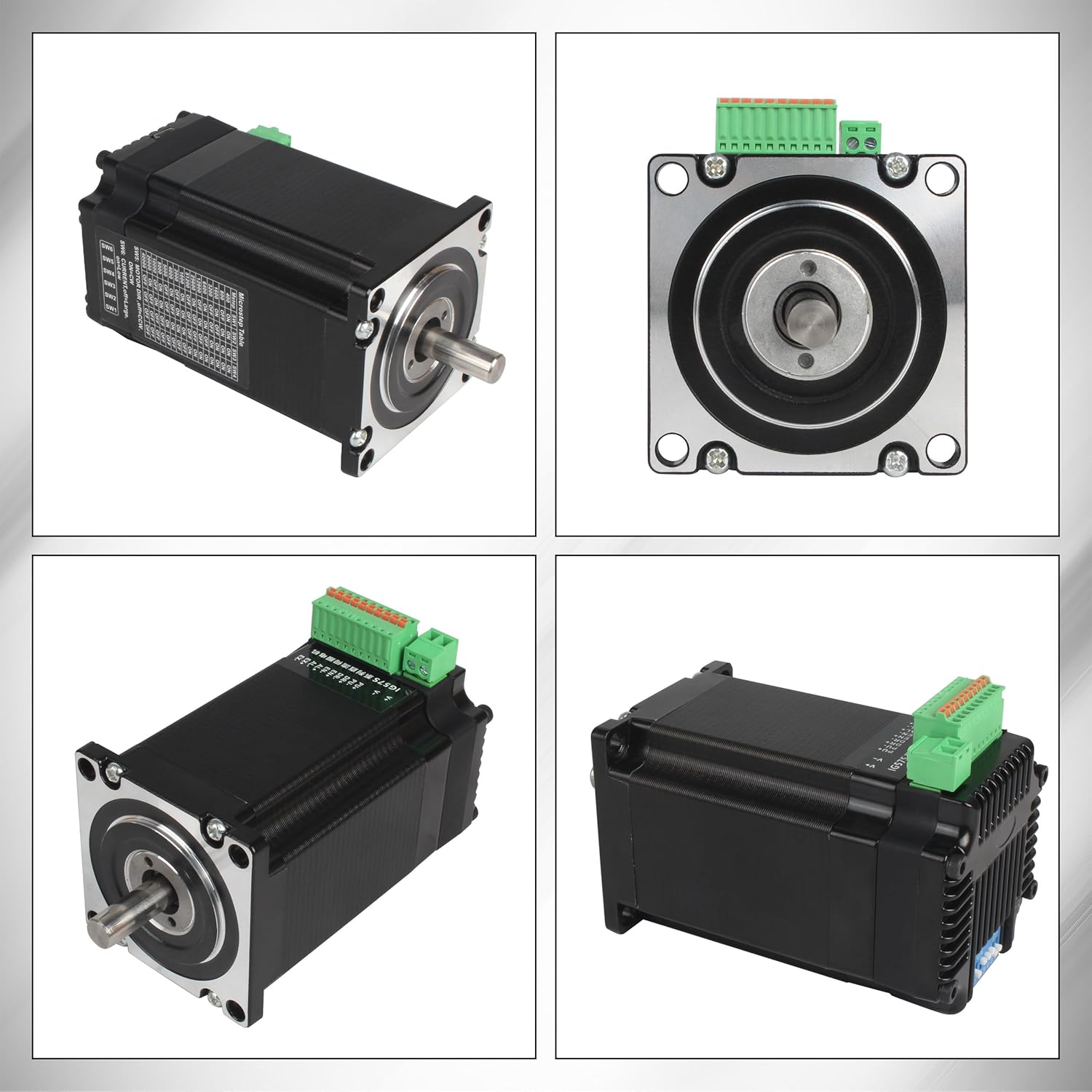

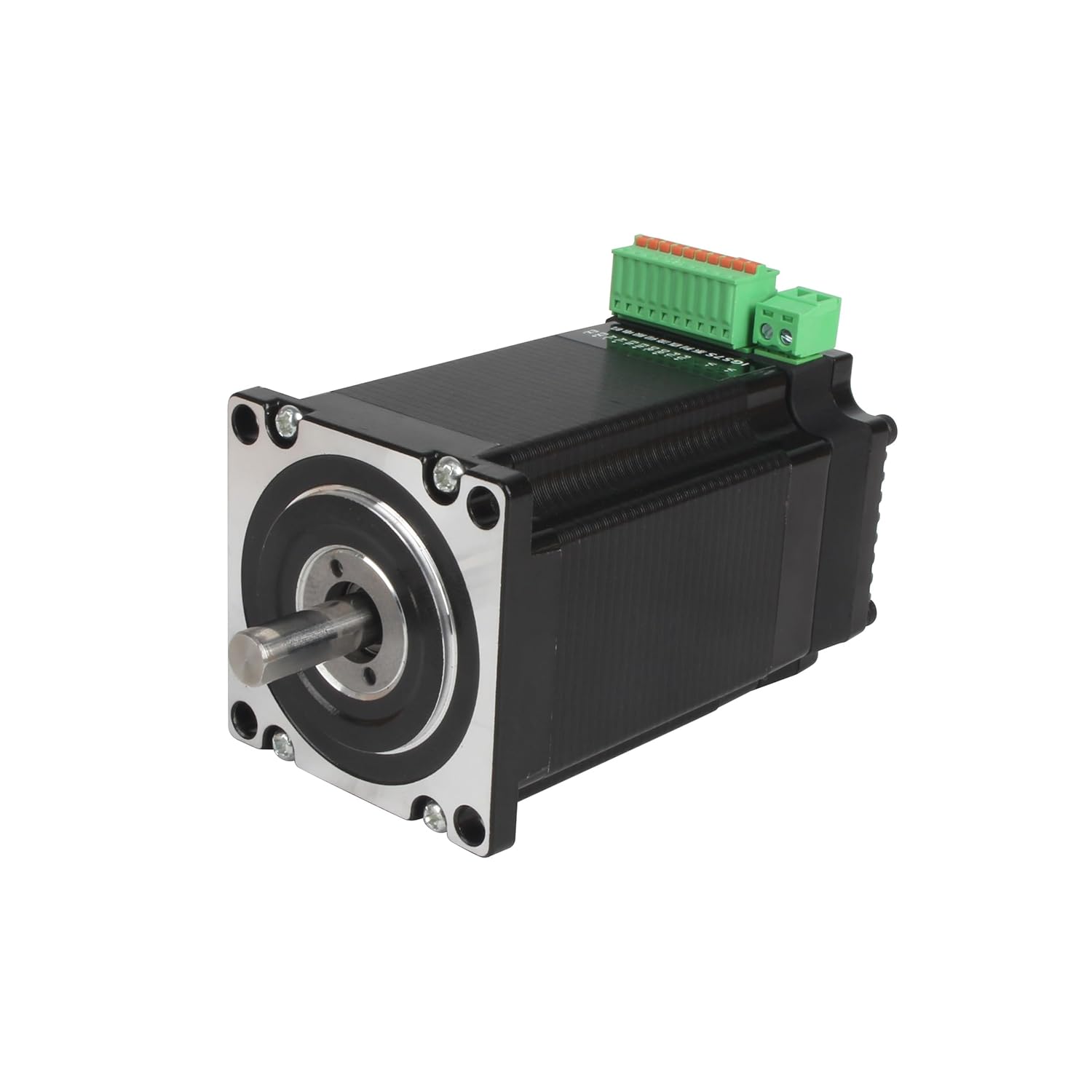

1 x Nema23 2.2N.m Integrated Closed loop Stepper Motor

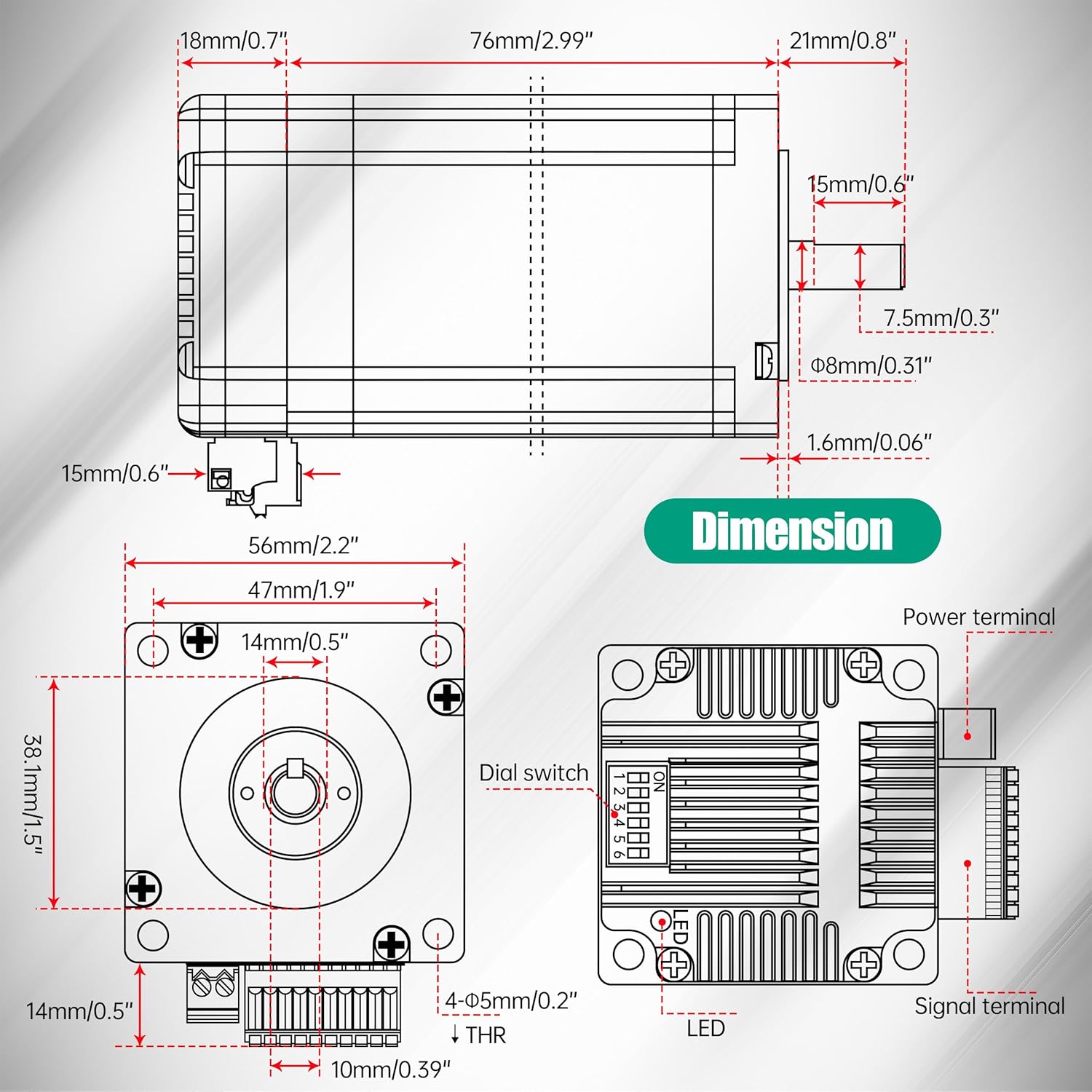

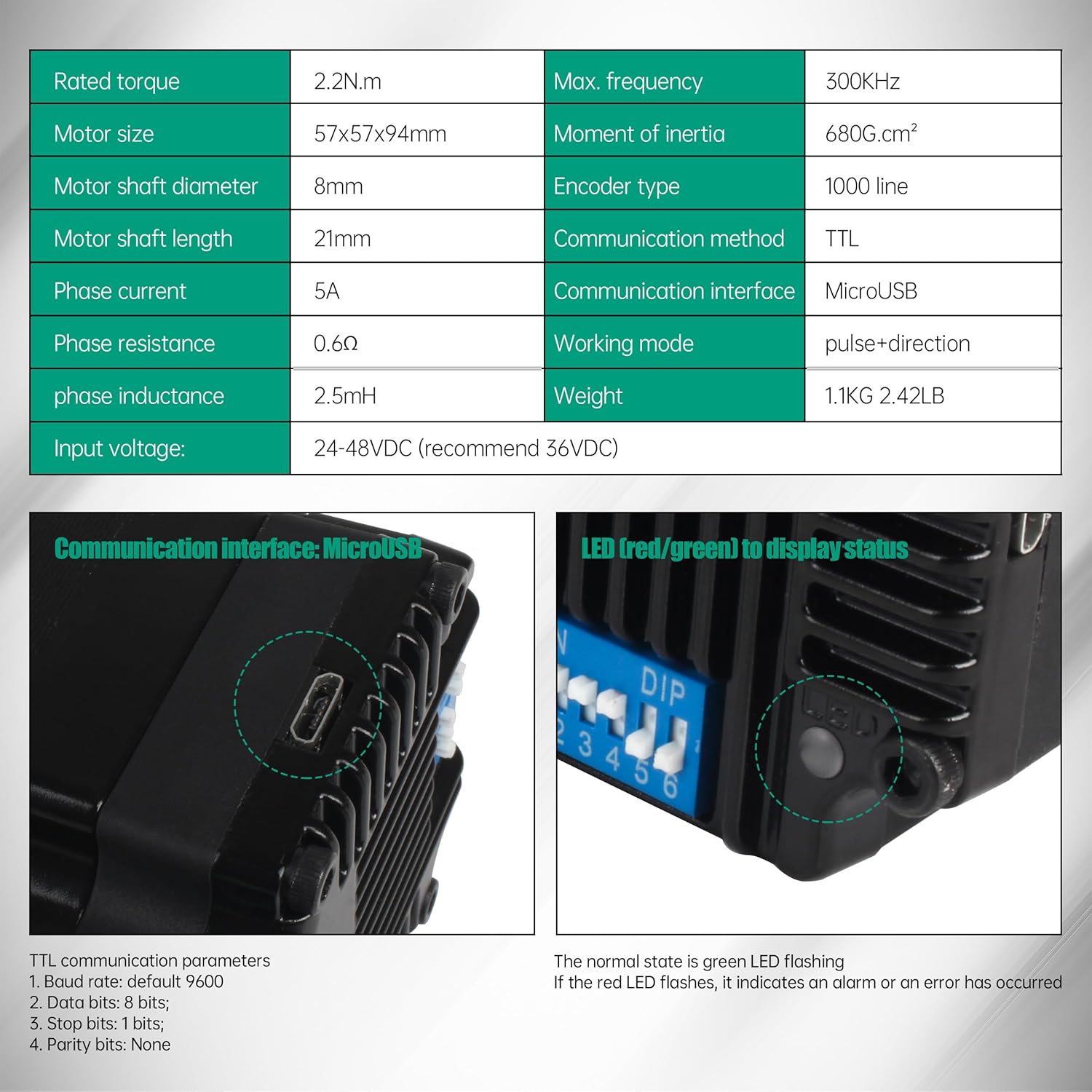

Rated torque 2.2N.m Motor size 57x57x94mm Motor shaft diameter 8mm Motor shaft length 21mm Input voltage 24-48VDC (recommend 36VDC) Phase current 5A Phase resistance 0.6Ω Phase inductance 2.5mH Max. frequency 300KHz Moment of inertia 680G.cm² Encoder type 1000 line Communication method TTL Communication interface MicroUSB Working mode pulse+direction Weight 1.1KG 2.42LB

The integrated closed-loop stepper motor integrates the closed-loop stepper motor driver into the stepper motor, and the two are integrated,no need to use a separate driver.

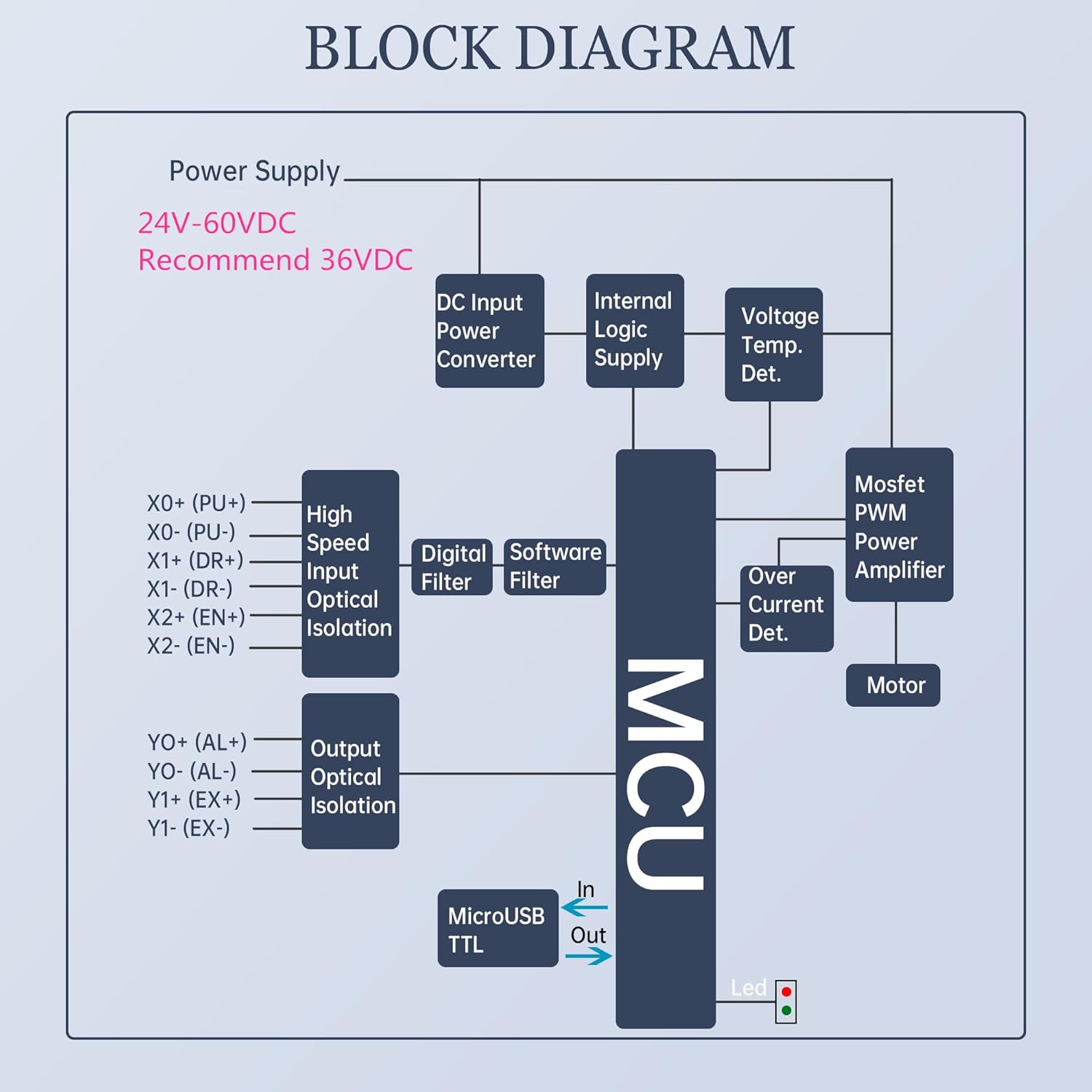

The vector control is designed and produced using an ARM processor with a DSP core, which has the characteristics of low cost, full closed-loop, all digital, low heat generation, low vibration, and fast response.Including three adjustable feeding back loop controls (position loop, speed loop, and current loop)

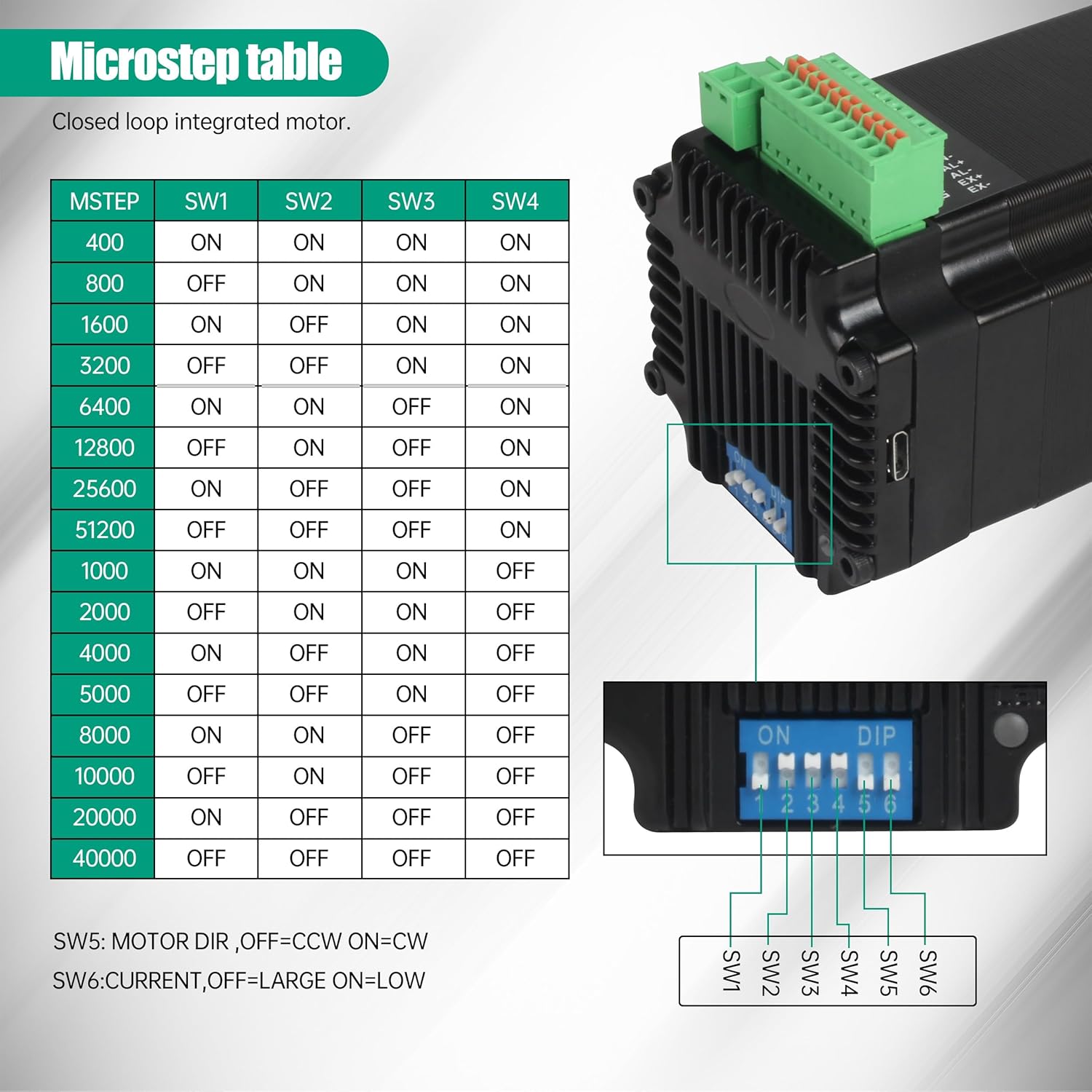

You can set 400-40000 Microstep through the dip switch

Product Dimensions ‏ : ‎ 3.94 x 7.87 x 14.57 inches; 7.37 ounces
Date First Available ‏ : ‎ March 5, 2025
Manufacturer ‏ : ‎ Changzhou Rattm Motor Co.,Ltd
ASIN ‏ : ‎ B0DZBBFF4D
Best Sellers Rank: #408,381 in Industrial & Scientific (See Top 100 in Industrial & Scientific) #148 in Motor Drives
Specifications: Type: Nema23 Integrated Closed loop Stepper Motor; Rated Torque: 2.2N.m; Encoder line: 1000; Motor size: 57x57x94mm; Shaft Diameter: 8mm; Input: DC24-60V,recommended DC36V; Current: 5A; Max. frequency: 300KHZ; Weight: 2.42LB
Integrated design: The integrated closed-loop stepper motor integrates the driver and motor body together, simplifying the system structure and reducing the difficulty of installation and maintenance

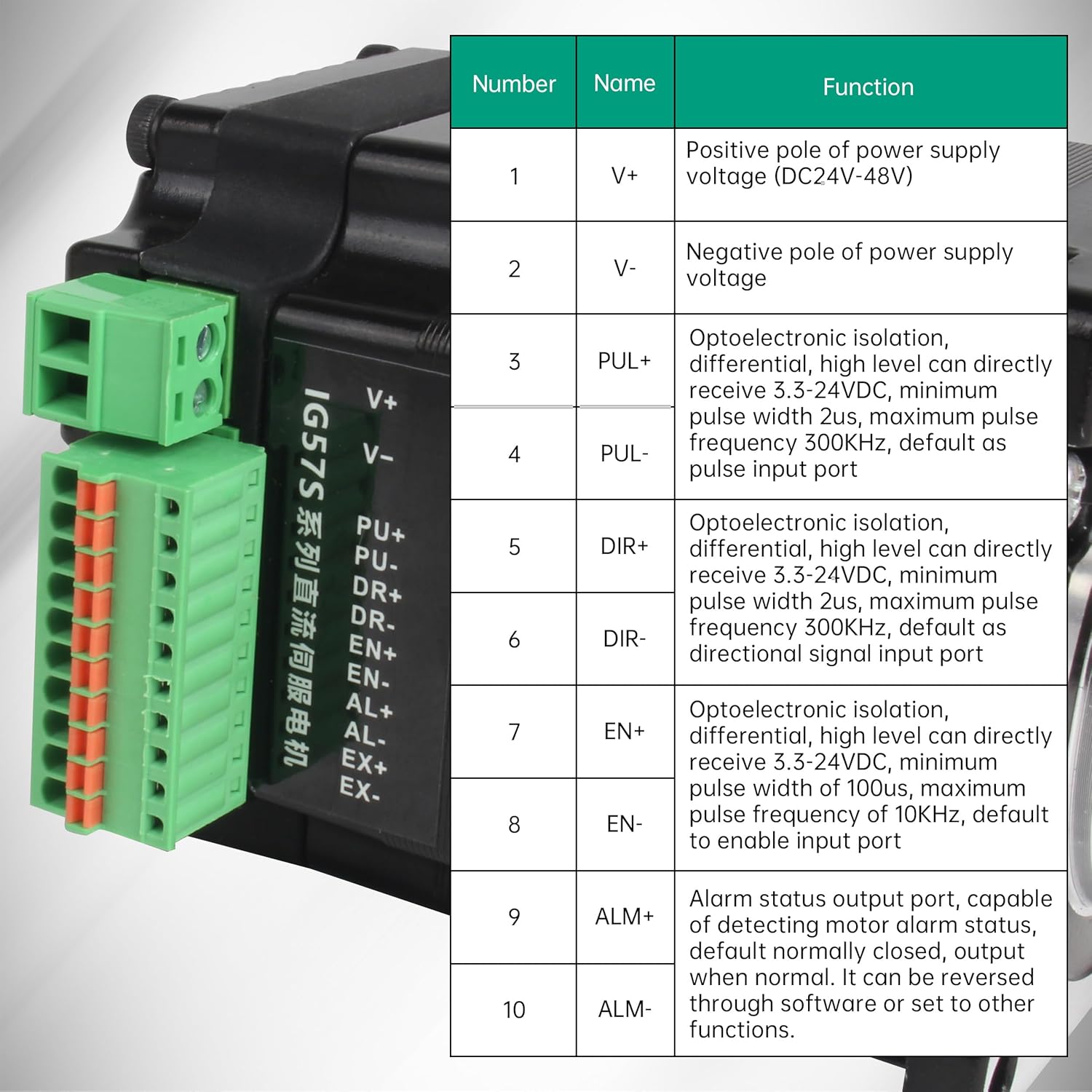

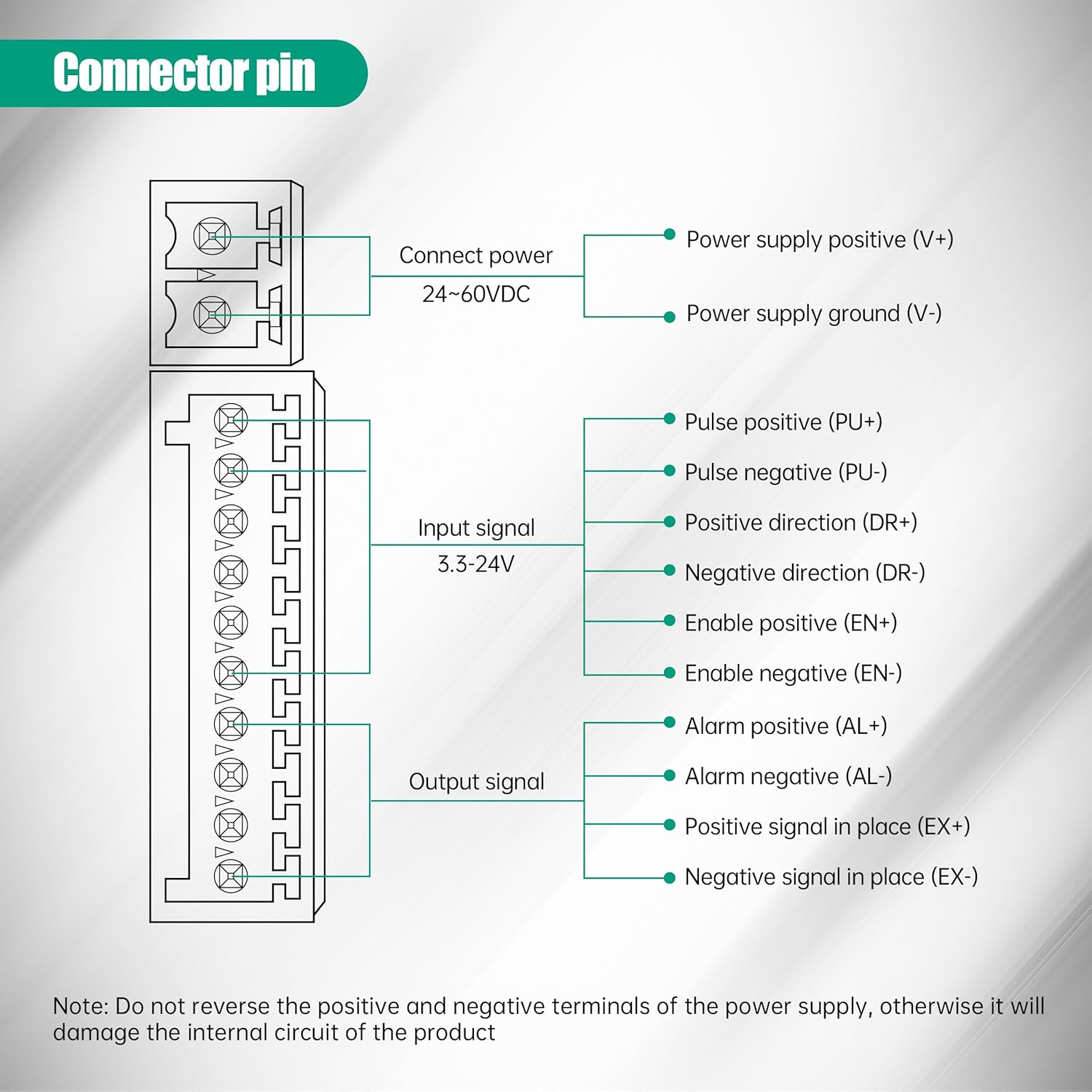

Communication function: It is a new motor-driven integrated stepper motor drive system with communication function; Communication method: TTL; Communication interface: MicroUSB; Working mode: pulse and direction
High performance control: Adopting closed-loop control technology, precise control of the motor is achieved by feeding back the position and speed information of the motor, improving the stability and accuracy of the system. The closed-loop motor effectively reduces the out of step phenomenon of the stepper motor, improves the positioning accuracy of the system, and its torque is also larger than that of ordinary stepper motors
Widely used: including CNC machines, industrial automation, and robotics technology,t hey are applied in joint drives, end effectors and other parts to achieve high-precision and high-speed motion control; Automated production line: used for equipment such as conveyor belts; Medical device field and other precision manufacturing equipment, etc
