D20*L25 Flexible Shaft Coupling, 6mm to 6mm Bore, Aluminum Plum Connector for 3D Printers, CNC Machines, and Servo/Stepper Motors
Product description

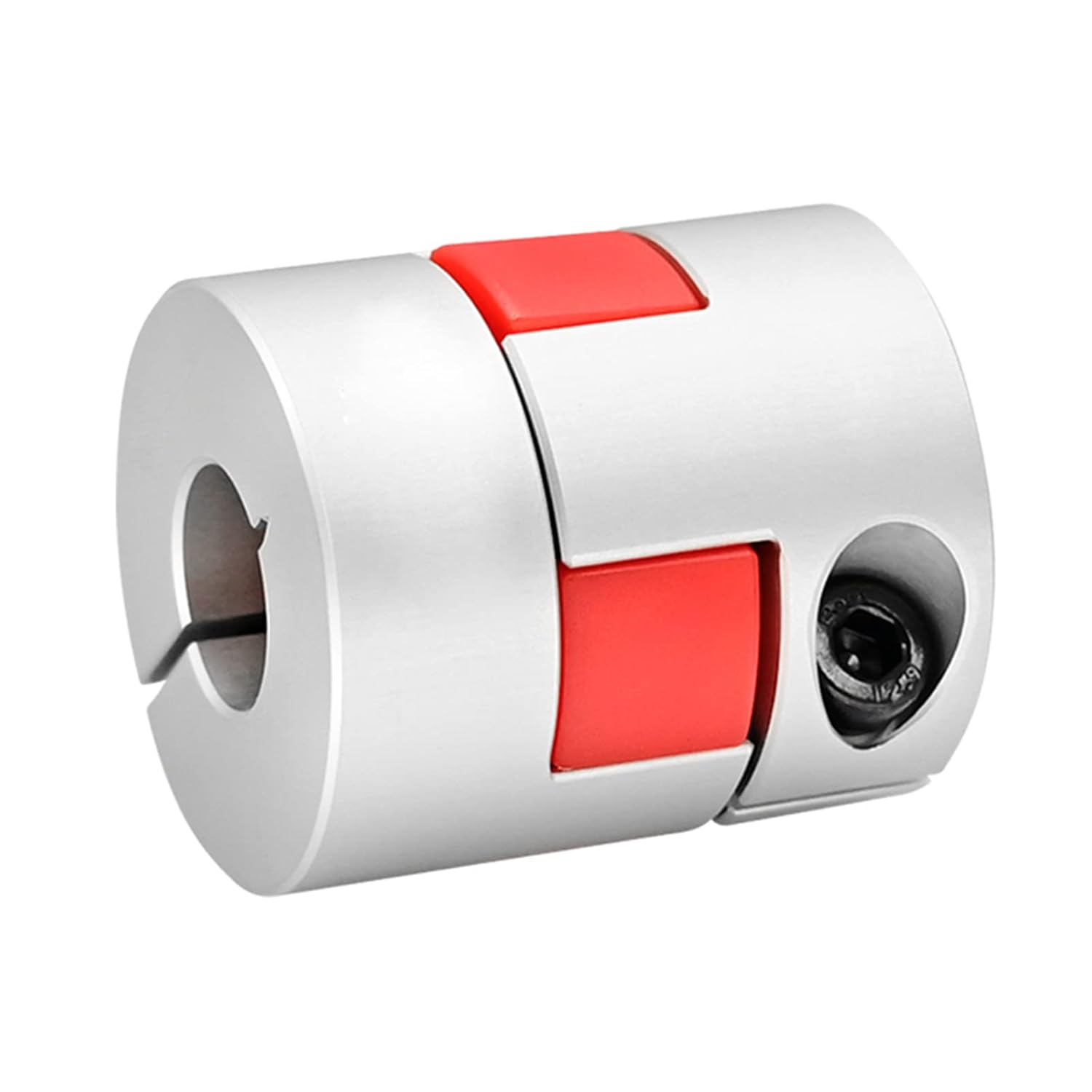

Flexible Shaft Coupling
High-Precision Aluminum Flexible Coupling for Stepper and Servo Motors

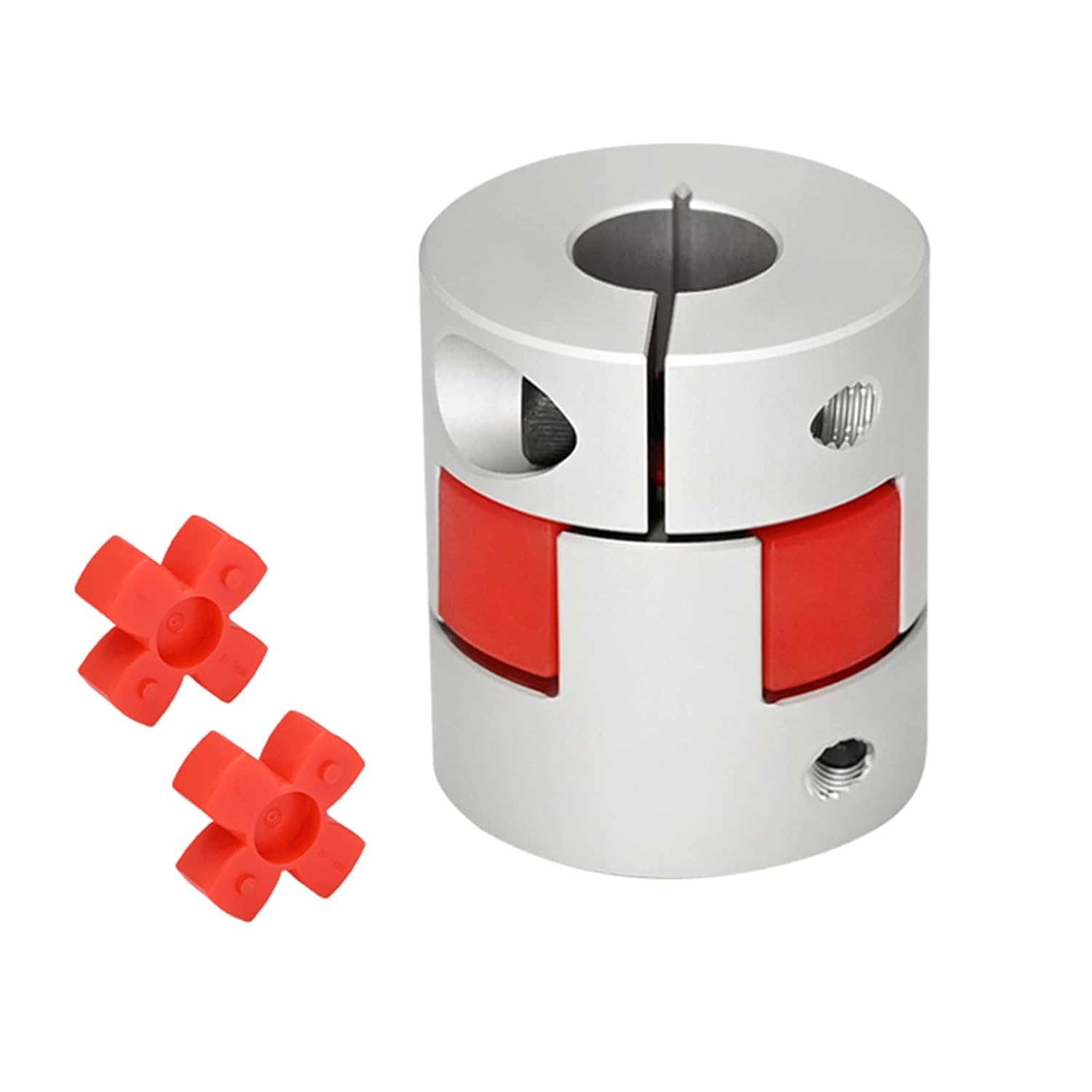

Made of high-quality aluminum alloy, this plum flexible shaft coupling offers excellent torsional rigidity and shock absorption. Ideal for stepper motors, servo motors, and encoder connections. Easy to install with clamping screws. Red elastomer insert ensures vibration damping and misalignment compensation.
Premium Build with H7 Precision and 12.9-Grade Fasteners
Anodized 6061-T6 Aluminum Coupling with 98 Shore A Polyurethane CorePrecision Coupling Built with Grade 12.9 Screws and H7 Tolerance HolesHigh-Strength Aluminum Shaft Coupler with Plug Gauge Inspected H7 HolesPremium Flexible Coupling – 6061-T6 Aluminum, H7 Fit, and 98A PolyurethaneReliable Power Transmission with 12.9 Screws and Plug Gauge-Verified Accuracy
R-Type Chamfer for Stress Reduction in Shaft Couplings
This flexible shaft coupling features an R-type chamfer at the cut seam to reduce sharp internal corners. This helps lower the risk of stress concentration in areas subject to frequent torque changes.
The R-radius fillet allows for more even load distribution during use. Suitable for applications such as CNC equipment, stepper motors, and servo systems, where precision shaft coupling performance is important.
Dimensional Parameters
Dimensional Parameters
Technical Specifications – Dimensions
Technical Specifications
Technical Specifications
Technical Specifications
Package Dimensions : 6.5 x 2.6 x 0.79 inches; 0.63 ounces
Date First Available : October 29, 2024
Manufacturer : SINOAXISSPACE
ASIN : B0DLBH1398
Best Sellers Rank: #238,327 in Industrial & Scientific (See Top 100 in Industrial & Scientific) #42 in Flexible Spider Couplings

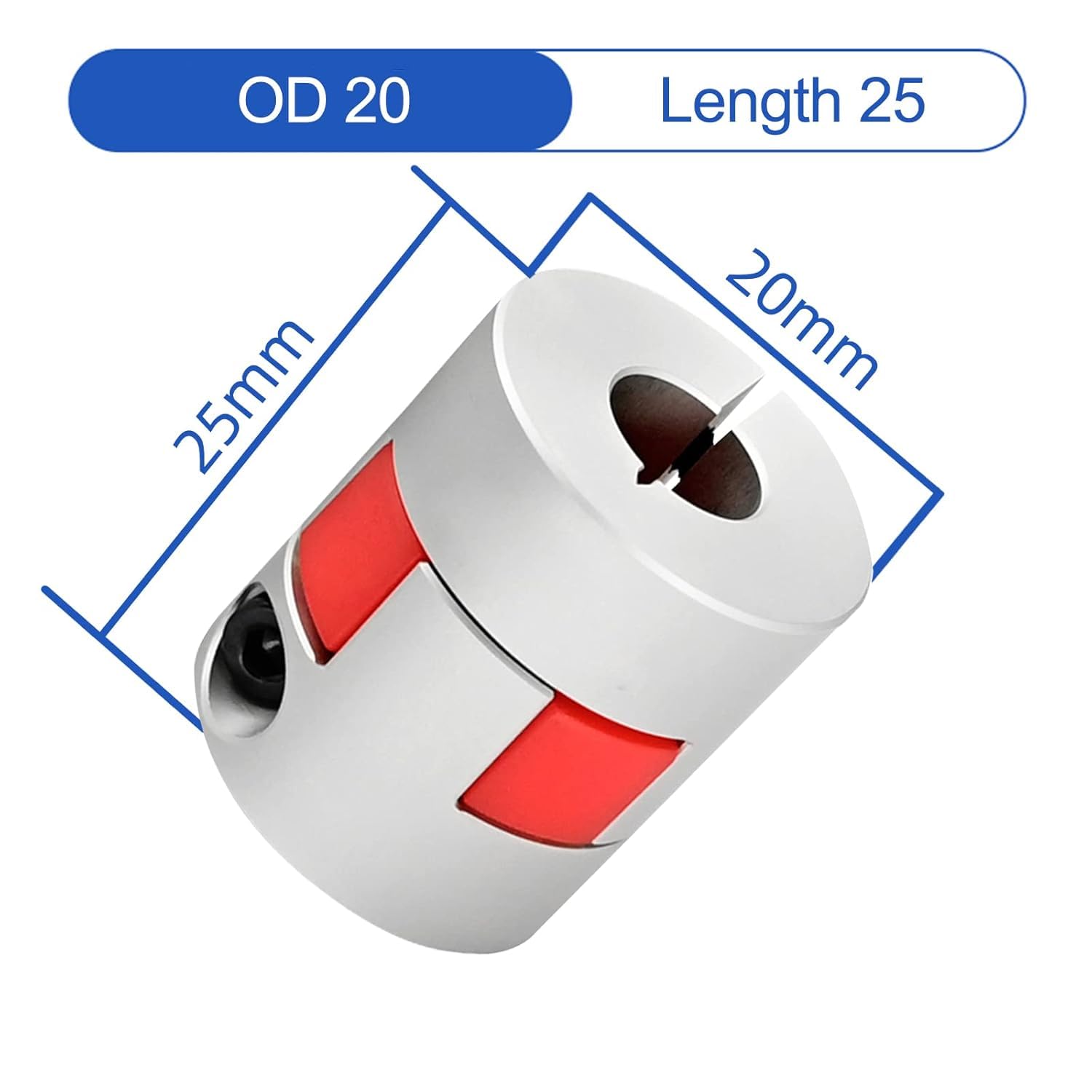

Dimensions: Outer Diameter 20mm, Length 25mm, Bore Size 6mm to 6mm – designed for precision fit and efficient performance
Enhanced Torque Capacity: Constructed with a durable polyurethane elastic spacer, delivering over 2x the torque capacity of traditional claw couplings
Zero Backlash Transmission: Enables zero-backlash torque transmission, providing smooth performance under low torque conditions
Durable and Insulated: Oil-resistant and electrically insulated plum elastomer, suitable for various applications, with a working temperature range of -20℃ to 80℃
Superior Vibration Absorption: Excellent elasticity helps absorb vibration, compensate for slight misalignment, and reduce shaft deflection, ensuring stable operation
$9.49
Price: $9.49
(as of Nov 25, 2025 21:16:36 UTC – Details)
Product description
Flexible Shaft Coupling
High-Precision Aluminum Flexible Coupling for Stepper and Servo Motors
Made of high-quality aluminum alloy, this plum flexible shaft coupling offers excellent torsional rigidity and shock absorption. Ideal for stepper motors, servo motors, and encoder connections. Easy to install with clamping screws. Red elastomer insert ensures vibration damping and misalignment compensation.
Premium Build with H7 Precision and 12.9-Grade Fasteners
Anodized 6061-T6 Aluminum Coupling with 98 Shore A Polyurethane CorePrecision Coupling Built with Grade 12.9 Screws and H7 Tolerance HolesHigh-Strength Aluminum Shaft Coupler with Plug Gauge Inspected H7 HolesPremium Flexible Coupling – 6061-T6 Aluminum, H7 Fit, and 98A PolyurethaneReliable Power Transmission with 12.9 Screws and Plug Gauge-Verified Accuracy
R-Type Chamfer for Stress Reduction in Shaft Couplings
This flexible shaft coupling features an R-type chamfer at the cut seam to reduce sharp internal corners. This helps lower the risk of stress concentration in areas subject to frequent torque changes.
The R-radius fillet allows for more even load distribution during use. Suitable for applications such as CNC equipment, stepper motors, and servo systems, where precision shaft coupling performance is important.
Dimensional Parameters
Dimensional Parameters
Technical Specifications – Dimensions
Technical Specifications
Technical Specifications
Technical Specifications
Package Dimensions : 6.5 x 2.6 x 0.79 inches; 0.63 ounces
Date First Available : October 29, 2024
Manufacturer : SINOAXISSPACE
ASIN : B0DLBH1398
Best Sellers Rank: #238,327 in Industrial & Scientific (See Top 100 in Industrial & Scientific) #42 in Flexible Spider Couplings
Dimensions: Outer Diameter 20mm, Length 25mm, Bore Size 6mm to 6mm – designed for precision fit and efficient performance
Enhanced Torque Capacity: Constructed with a durable polyurethane elastic spacer, delivering over 2x the torque capacity of traditional claw couplings
Zero Backlash Transmission: Enables zero-backlash torque transmission, providing smooth performance under low torque conditions
Durable and Insulated: Oil-resistant and electrically insulated plum elastomer, suitable for various applications, with a working temperature range of -20℃ to 80℃
Superior Vibration Absorption: Excellent elasticity helps absorb vibration, compensate for slight misalignment, and reduce shaft deflection, ensuring stable operation
