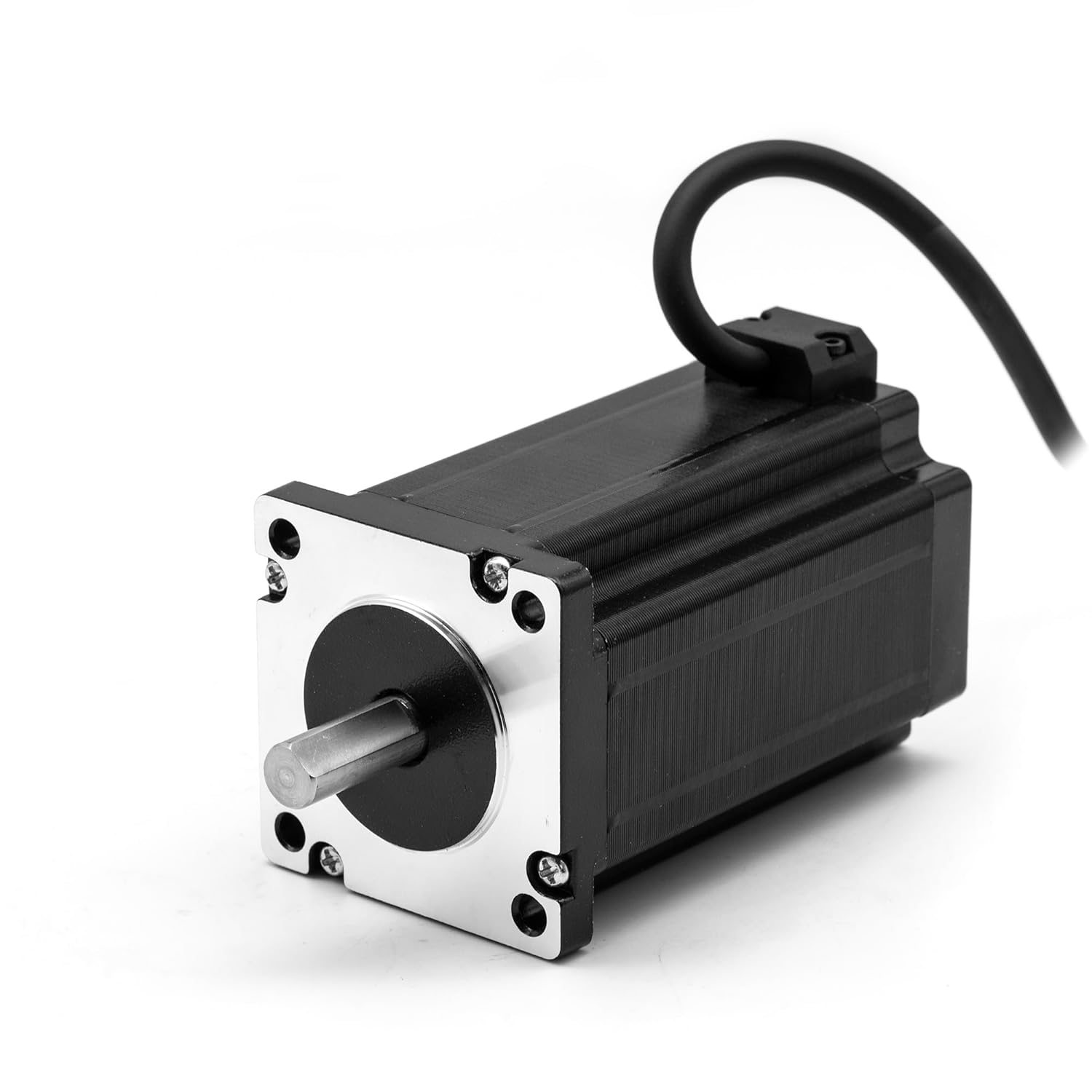

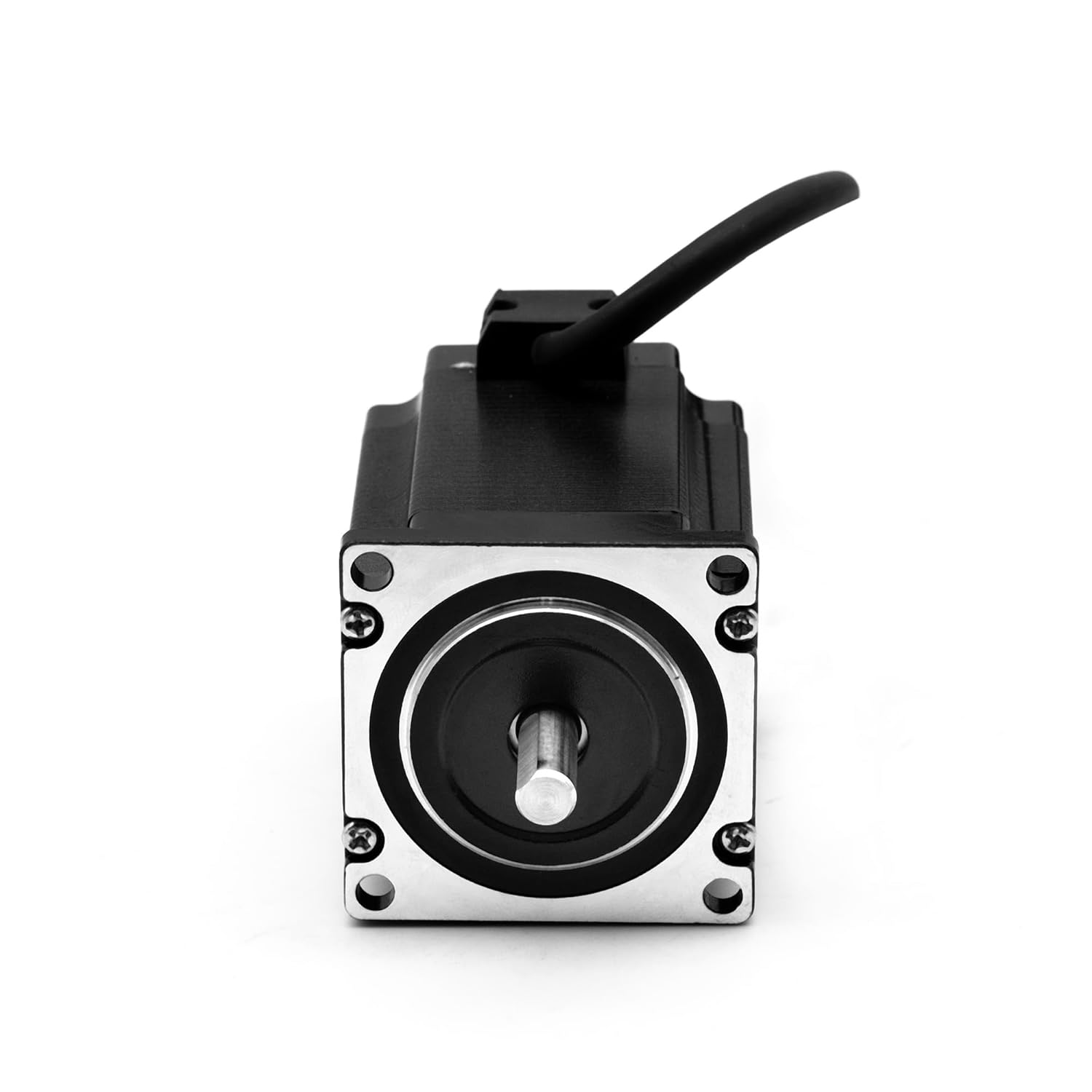

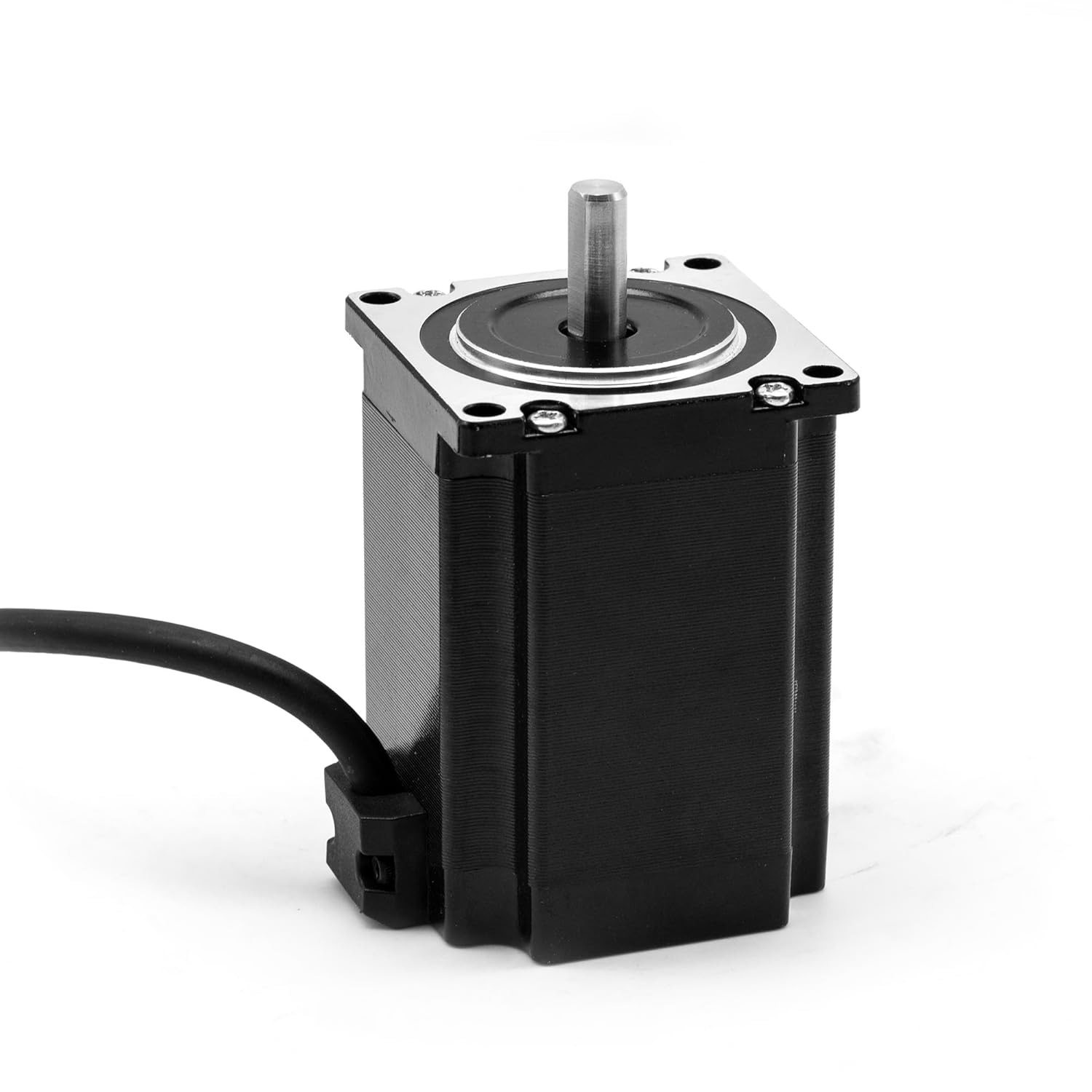

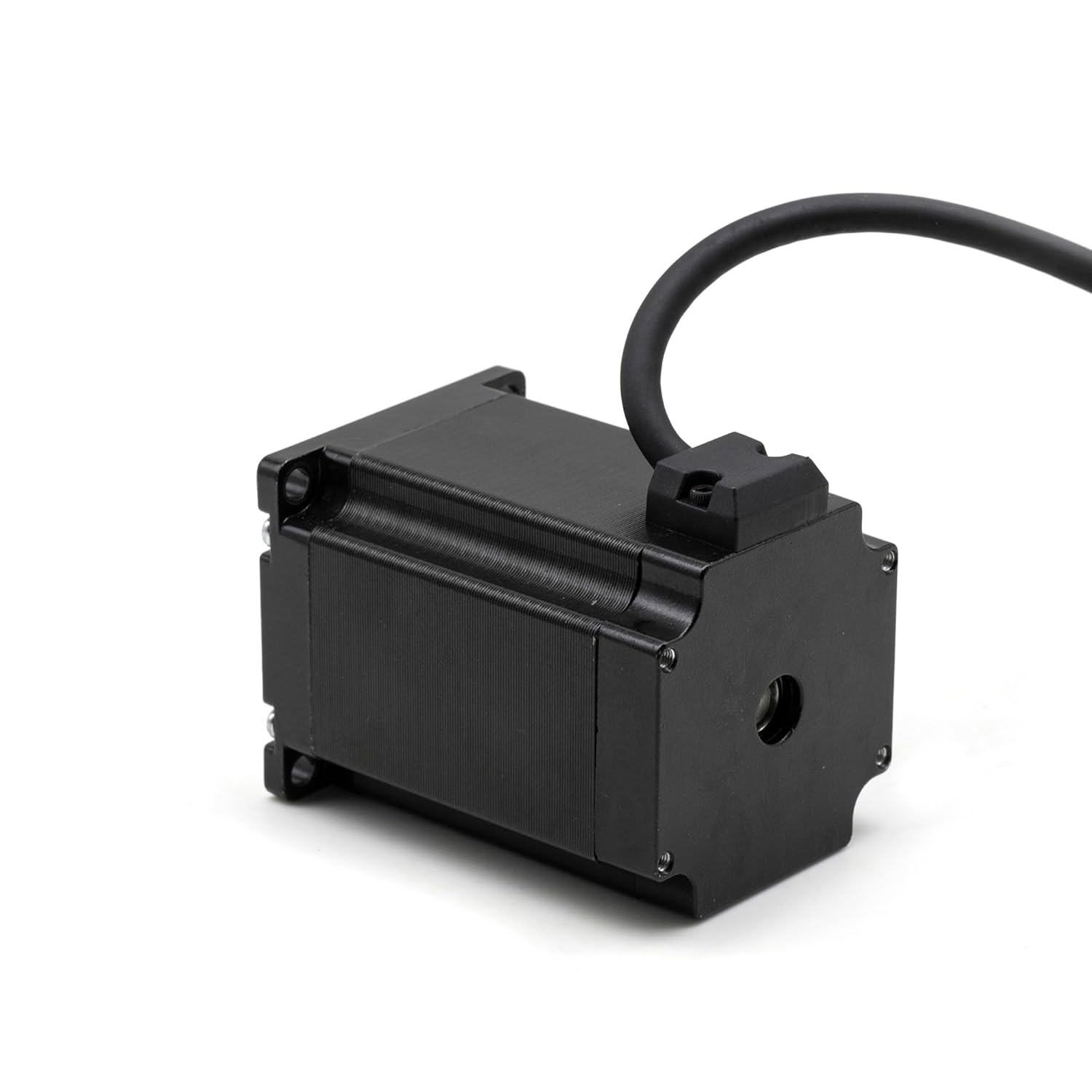

Nema 23 57mm Stepper Motor 3Nm/300Ncm 425oz.in High Torque 8mm Output Shaft 1.8 Stepper Angle 2-Phase 4-Wires 3A Step Motor for CNC 3D Printer Mill Lathe Robot Engraving Machine

Price: $39.99
(as of Nov 22, 2025 05:19:07 UTC – Details)

From the brand

TOSEASTARS

TOSEASTARS is dedicated to developing modular industrial automation power and actuator systems.

Planetary Gearbox

Stepper Motor

Product Dimensions ‏ : ‎ 2.24 x 2.24 x 4.41 inches; 3.9 Pounds
Item model number ‏ : ‎ 57HS11230A4D8
Date First Available ‏ : ‎ February 5, 2025
Manufacturer ‏ : ‎ TOSEASTARS
ASIN ‏ : ‎ B0DS3Z3BH9
Best Sellers Rank: #155,829 in Industrial & Scientific (See Top 100 in Industrial & Scientific) #67 in 3D Printer Motors
Customer Reviews: 3.7 3.7 out of 5 stars 5 ratings var dpAcrHasRegisteredArcLinkClickAction; P.when(‘A’, ‘ready’).execute(function(A) { if (dpAcrHasRegisteredArcLinkClickAction !== true) { dpAcrHasRegisteredArcLinkClickAction = true; A.declarative( ‘acrLink-click-metrics’, ‘click’, { “allowLinkDefault”: true }, function (event) { if (window.ue) { ue.count(“acrLinkClickCount”, (ue.count(“acrLinkClickCount”) || 0) + 1); } } ); } }); P.when(‘A’, ‘cf’).execute(function(A) { A.declarative(‘acrStarsLink-click-metrics’, ‘click’, { “allowLinkDefault” : true }, function(event){ if(window.ue) { ue.count(“acrStarsLinkWithPopoverClickCount”, (ue.count(“acrStarsLinkWithPopoverClickCount”) || 0) + 1); } }); });

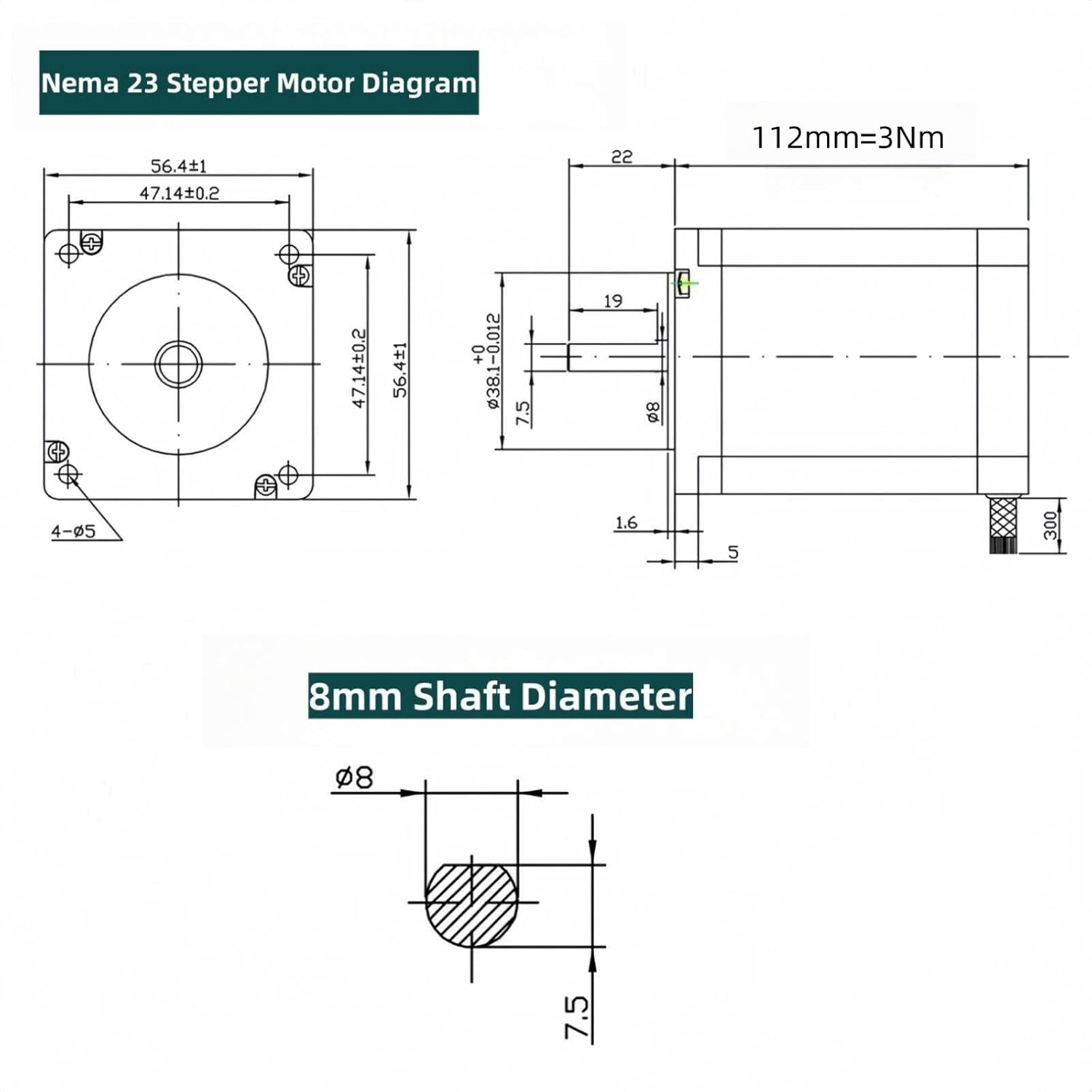

1 x Nema23 57mm stepper motor. Step motor 57x57x112 mm / 2.24*2.24*4.4 inch. 1 x100 cm (40″) cable.
Higher Torque: Nema 23 stepper motor with 3Nm/300Ncm (425oz.in), 112mm body length.
Specification: Rated Current/phase: 3.0A; Step angle 1.8deg, 200 steps/revolution. 1.6 ohms (Ω) phase resistance, 6.8mH phase inductance. Shaft Diameter: 8mm, D Shaft.
Applications: Semiconductor equipment, milling machine, engraver machine , cnc router , 3D printers, medical equipment, industrial equipment and automation devices, etc.
Recommend using stepper motor driver with voltage of 20-50VDC and at least 3A current. Toseastars DM556 is fully adapted.
