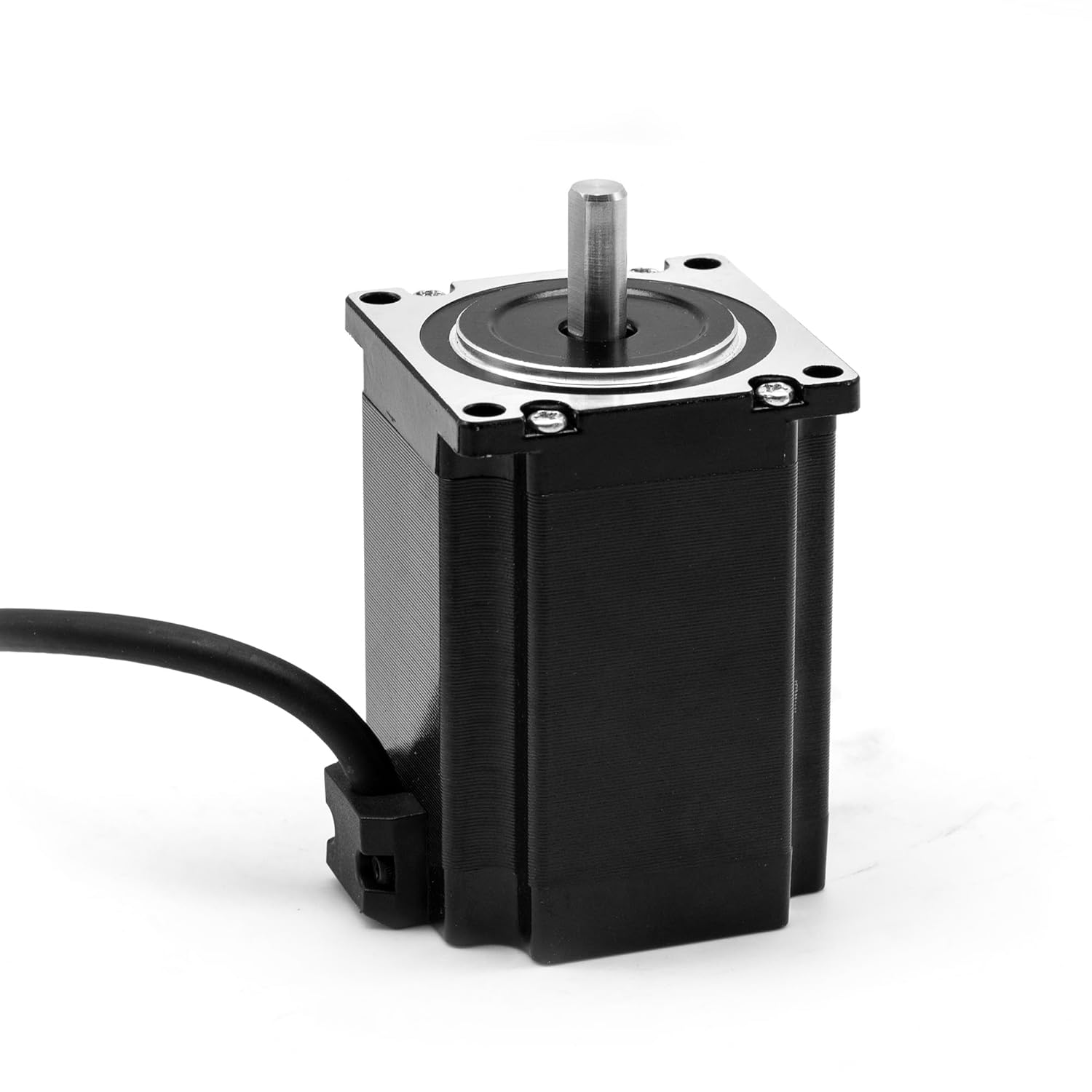

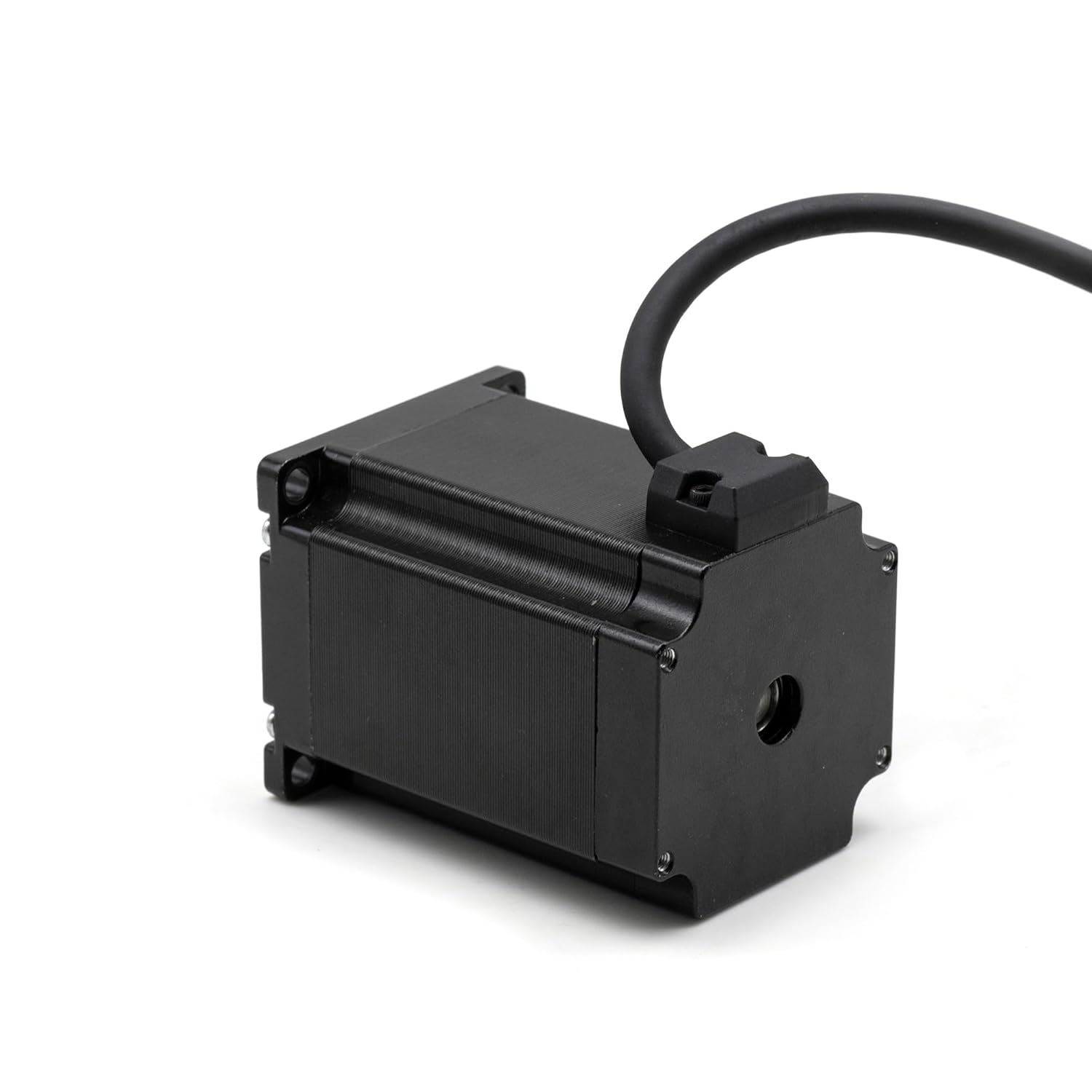

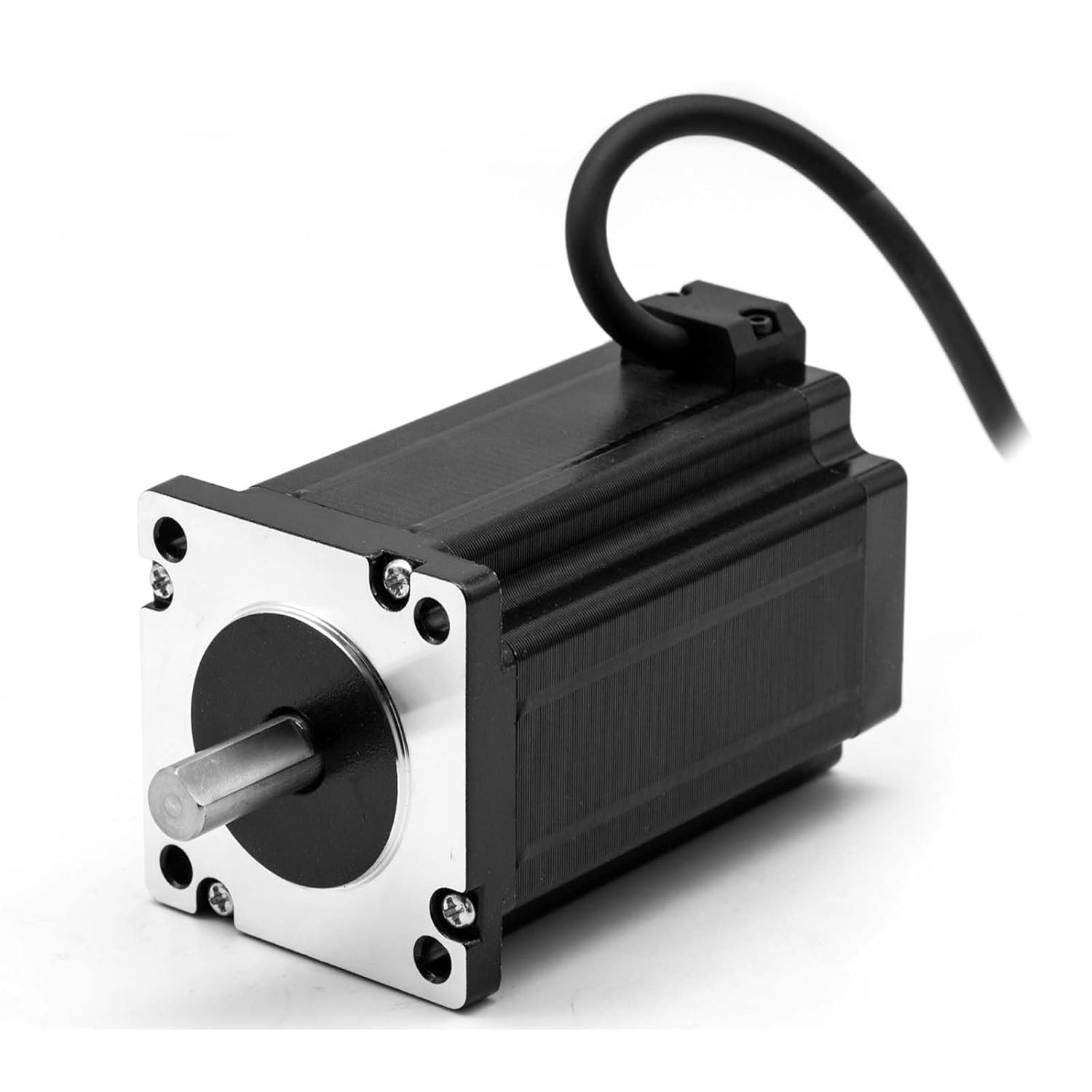

Nema23 57mm Stepper Motor 2Nm/285oz.in 3A 8mm Shaft 2-Phase 4-Lead Wire Nema 23 Step Motors 1.8 Stepper Angle Stepping Motor for CNC 3D Printer Lathe Milling Machine Robotics

Price: $29.99
(as of Sep 25, 2025 06:38:02 UTC – Details)

From the brand

TOSEASTARS

TOSEASTARS is dedicated to developing modular industrial automation power and actuator systems.

Planetary Gearbox

Stepper Motor

Product Dimensions ‏ : ‎ 2.24 x 2.24 x 3.15 inches; 2.7 Pounds
Item model number ‏ : ‎ Stepper Motor
Date First Available ‏ : ‎ February 5, 2025
Manufacturer ‏ : ‎ TOSEASTARS
ASIN ‏ : ‎ B0DS4DBNZJ
Best Sellers Rank: #257,265 in Industrial & Scientific (See Top 100 in Industrial & Scientific) #110 in 3D Printer Motors
Customer Reviews: 3.4 3.4 out of 5 stars 4 ratings var dpAcrHasRegisteredArcLinkClickAction; P.when(‘A’, ‘ready’).execute(function(A) { if (dpAcrHasRegisteredArcLinkClickAction !== true) { dpAcrHasRegisteredArcLinkClickAction = true; A.declarative( ‘acrLink-click-metrics’, ‘click’, { “allowLinkDefault”: true }, function (event) { if (window.ue) { ue.count(“acrLinkClickCount”, (ue.count(“acrLinkClickCount”) || 0) + 1); } } ); } }); P.when(‘A’, ‘cf’).execute(function(A) { A.declarative(‘acrStarsLink-click-metrics’, ‘click’, { “allowLinkDefault” : true }, function(event){ if(window.ue) { ue.count(“acrStarsLinkWithPopoverClickCount”, (ue.count(“acrStarsLinkWithPopoverClickCount”) || 0) + 1); } }); });

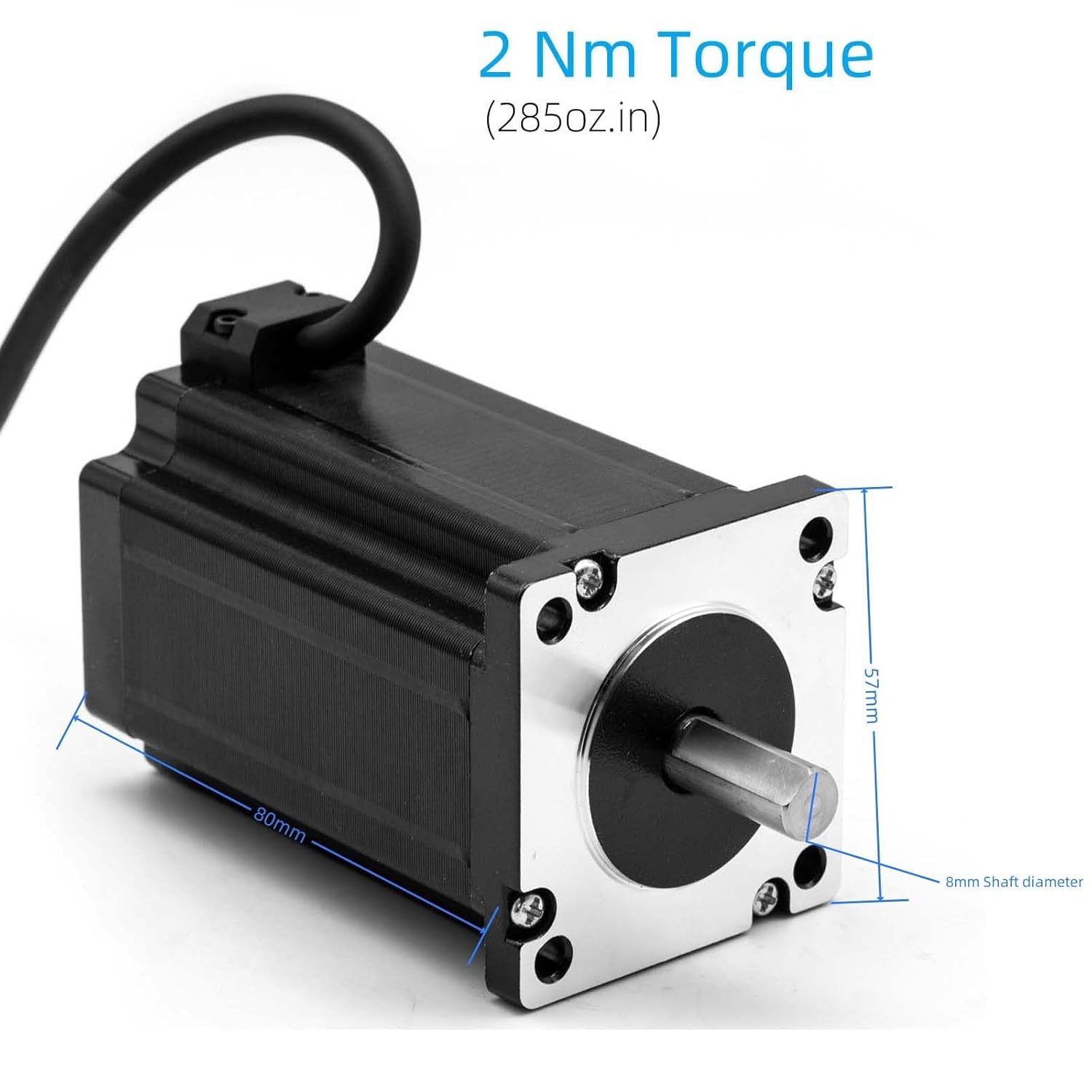

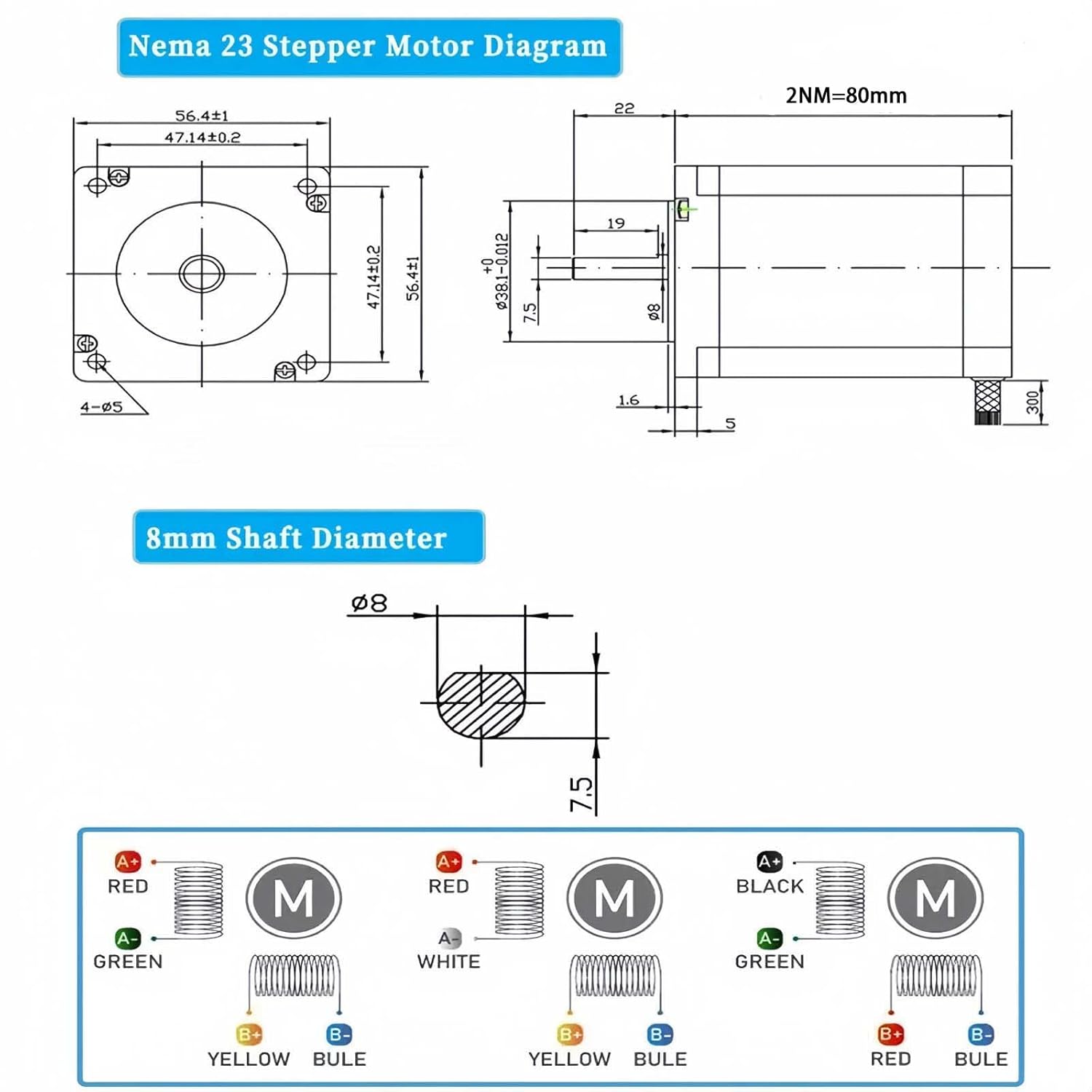

Higher Torque: Nema 23 stepper motor with 8mm shaft, 2Nm (200Ncm 285oz.in) holding torque, motor size 57x57x80 mm / 2.24 x2.24 x3.15 inch.
Type: 2 phase Hybrid Stepper Motor with 4 lead wires. 1.8 degree,(200 steps/rev).
Specification: Rated Current/phase: 3.0A. Phase Inductance 4.6 (mH). Phase Resistance: 1.2 ohms(Ω). Shaft Diameter: 8mm ( D Shaft Φ 7.5mm ).
Applications: Semiconductor Equipment, Milling Machine, Engraver Machine , CNC Routers , 3D printers, medical equipment, industrial equipment, laser machine, automation devices.
List: Come with 1PCS 80MM Nema 23 stepper motor with 100 cm (40″) cable. If you have any concerns or questions during the purchase process, please feel to tell Toseastars, we are 24 hours to provide you with professional service advice.
