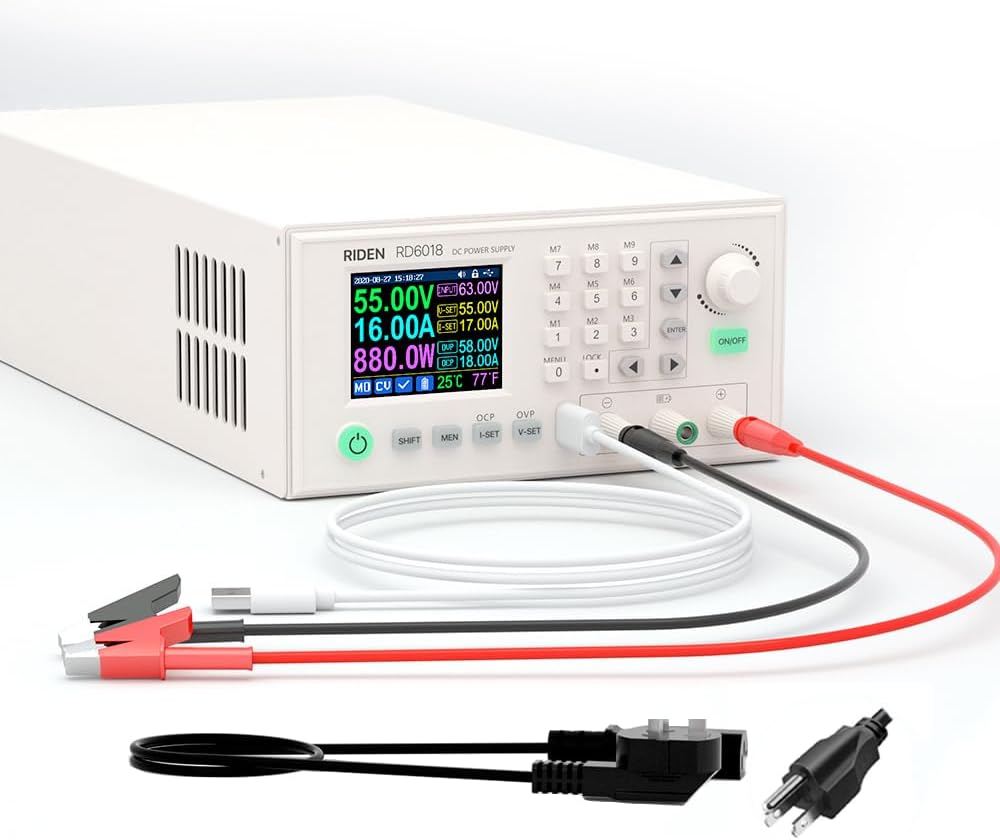

RD RD6018 DC Power Supply Variable Adjustable Lab Bench Power Supply Buck Converter Step Down Switching Regulated 4-Digital LCD Display 60V 18A 1080W

Price: $259.00
(as of Sep 23, 2025 14:41:33 UTC – Details)

Product description

This is RD6018 assembled set, it can output 60V or 18A separately , but it cannot full output 1080W, under 110V AC voltage, you can get 950W max at RD6018 output.This is RD6018 assembled set, not need you to assemble, and it is set to 100-120V AC input.Housing + RD6018W + Power supply ( 68V 17.6A 1200W)+18A Output power cord（ Already assembled）—Without input power cord—Specifications:Material: ABS ，Color: whiteDisplay screen: 2.4 inch color LCD displayOutput voltage current range: 0-60V 0-18.000A)(1080W Max)Output voltage current measurement resolution: 0.01V， 0.001AOutput power range: 1080W @ 230V，950W@ 120VBattery voltage measurement resolution: 0.01VOutput voltage current accuracy: ±(0.3%+3 digits)， ±(0.5%+5 digits)Battery voltage measurement accuracy: ±(0.5%+3 digits)

Output ripple typical: 100mV VPPConstant voltage mode response time: 2ms(0.1A-5A load)External sensor temperature detection range: -10℃~100℃/0℉~200℉External sensor temperature detection accuracy: ± 3℃/ ± 6℉Constant voltage current mode load adjustment rate : ±(0.1%+2 digits)，±(0.1%+3 digits)Capacity measurement measurement range: 0-9999.99Ah， 0-9999.99Wh

Screen brightness setting: 0-5 level total 6 levelsCapacity and energy statistical error: ±2%Working mode: buck mode voltage drop >1V and >10%Working temperature range: -10℃~40℃Power supply size: 330 * 170 * 95mm / 13.05 * 6.7 * 3.75inPackage size: 380 * 235 * 150mm / 15 * 9.25 * 5.9inPackage weight: RD6018 3KG / 6.6lb

Battery Charging

You can use this device to charge battery, but you need to use the Green-Black terminal to do that, because we set protection function at the battery charging terminal so that even you connect in the wrong way, the device will not be damaged

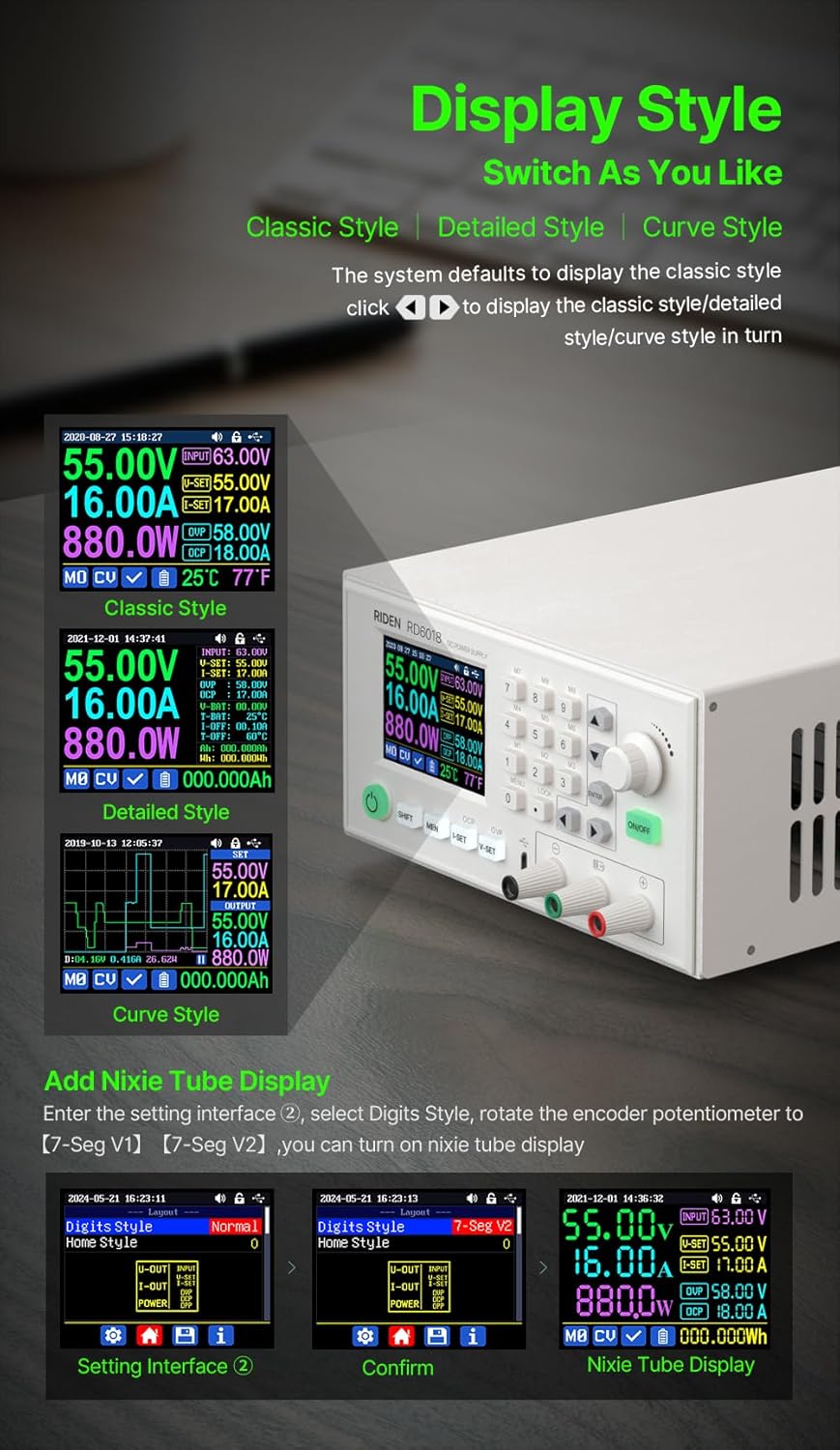

Display Style

You can set the display style to traditional mode, curve mode or detailed mode, just press the left or right direction button and it is ok

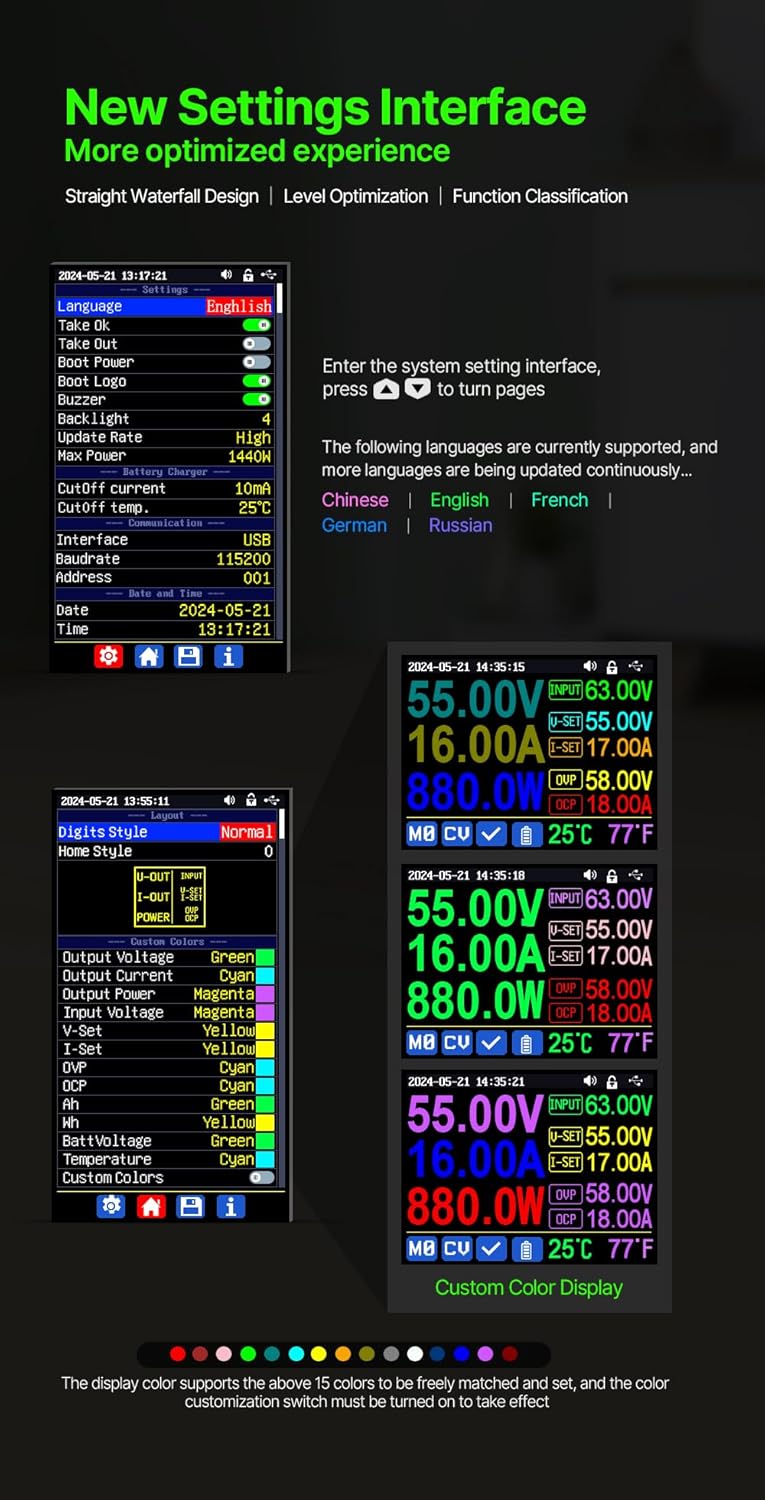

Display Color

You can set each parameter with the color you like, just need to active the custom color option, then the modification will be applied

Firmware update

If there is new function, you can use the PC software to connect the device and update the firmware to get the new function

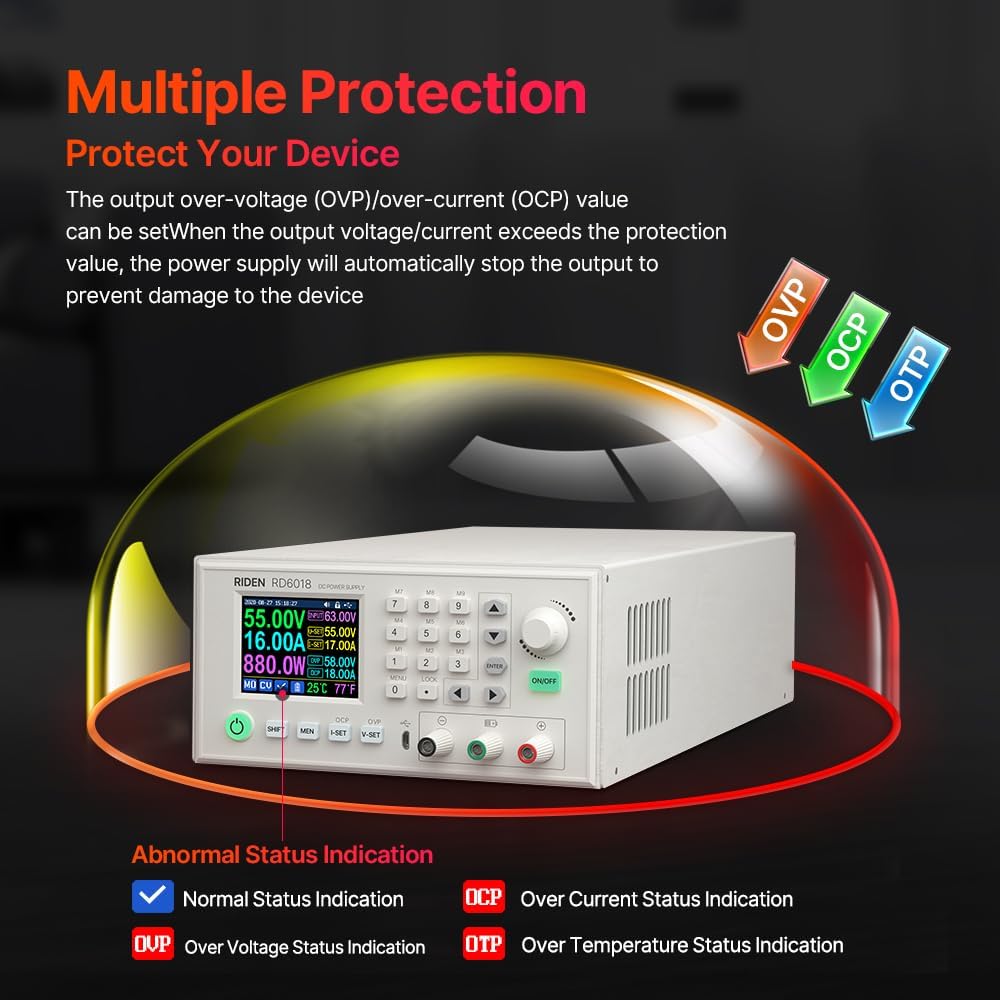

Protection indication

This icon will show you the device status, if it is normal or it is under over voltage/current/temperature protection mod

Fuse install

If you burn the fuse, you can use the spare fuse, insert it to the socket next to the fuse for short time usage, but it is better to replace the damaged one

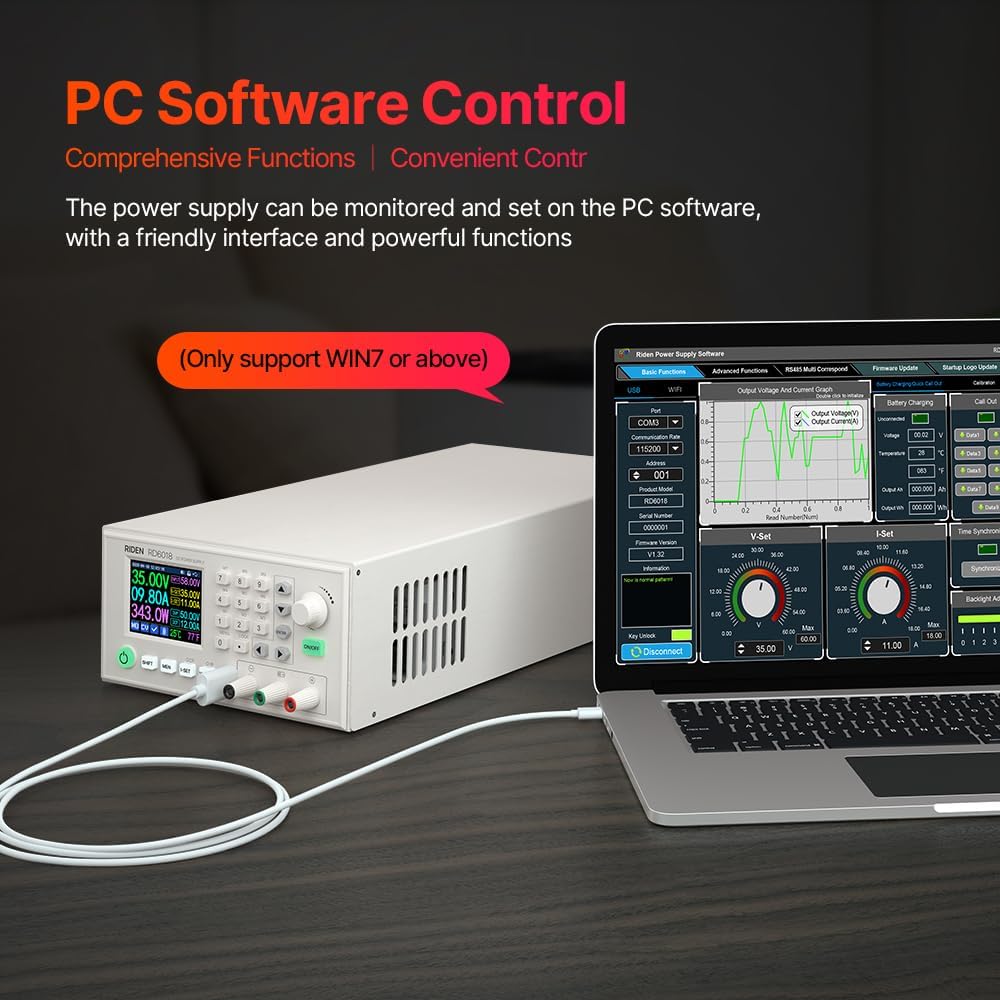

You can use the USB micro cable to connect to the PC software, remote monitoring, settings and program upgrades.
The built-in cooling fan with a thermal sensor will keep the power supply cool, reduce noise and extend life. Removable snap-on fuse is used, which is convenient to replace with new fuse and easy to repair.
High precision, high reliability and perfect limit current protection, thermal protection, voltage overload protection function. When the output voltage or current exceeds the protection value, the output will be automatically turned off to prevent damage to the load.Widely used in homes, laboratories, schools, equipment maintenance, various battery charging, etc.

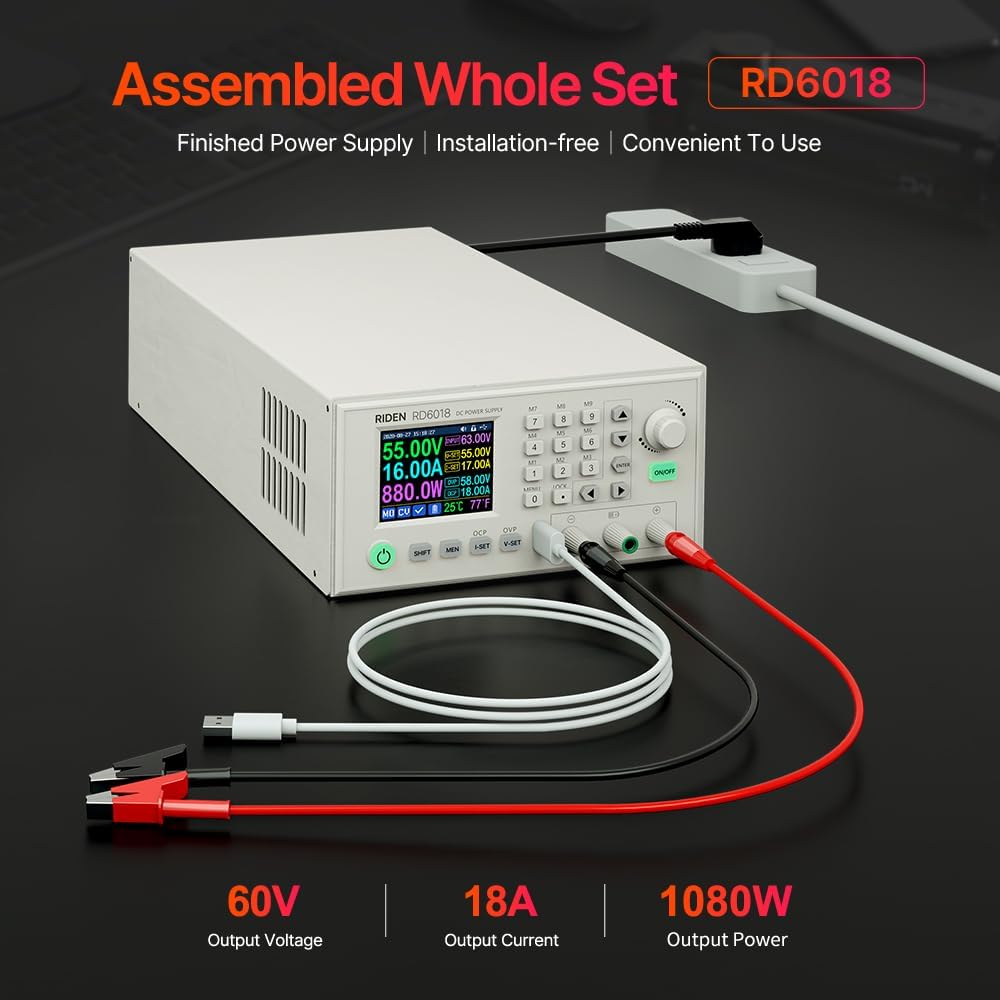

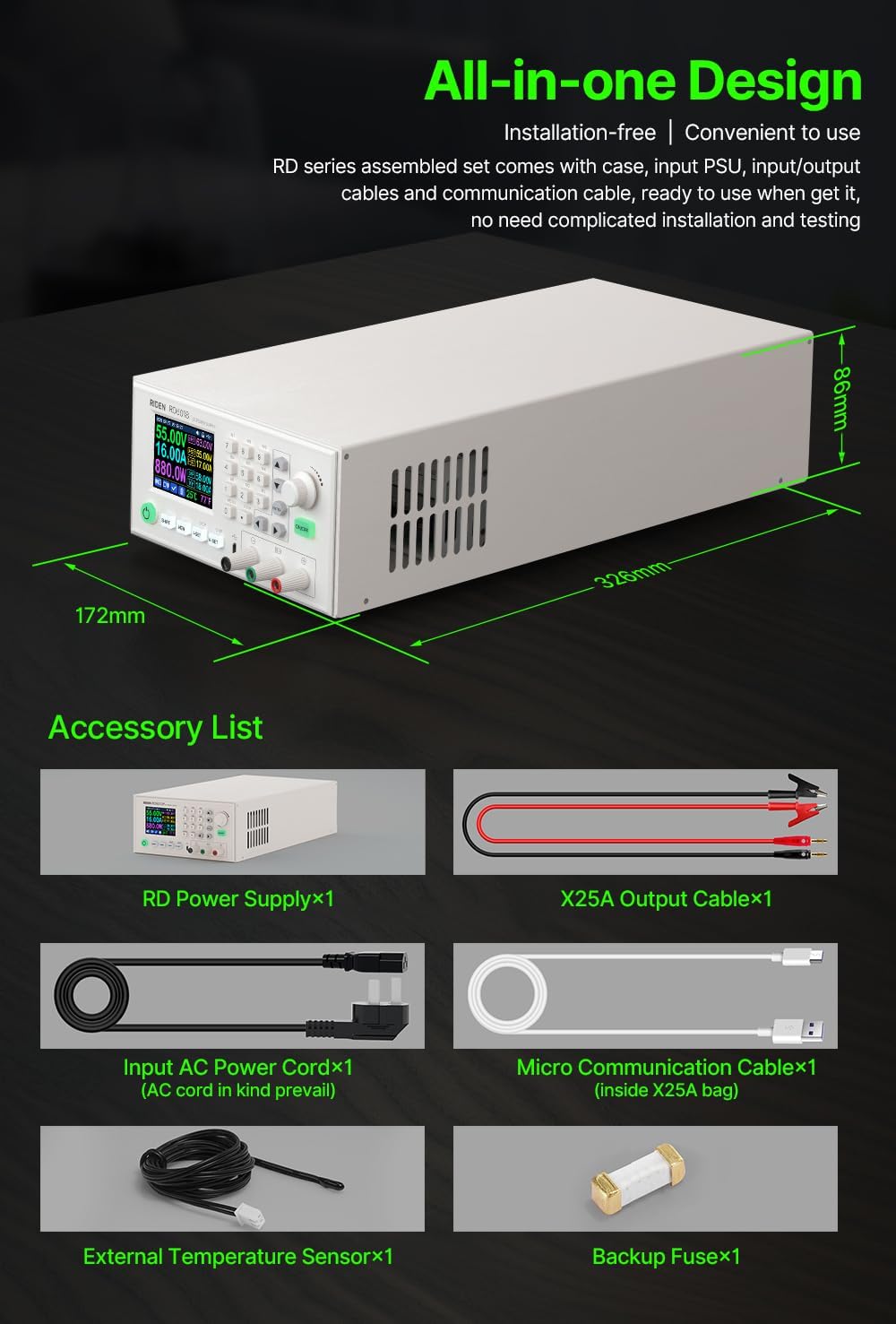

Housing + RD6018W+ Power supply ( 68V 17.65A Max 1200W) )（ Already assembled ）( 60V 18A max 1080w） ，Manual software download：https://www.avhzy.com/html/product-detail/rd6006 Video: https://youtu.be/3NEGBBqJiSM
