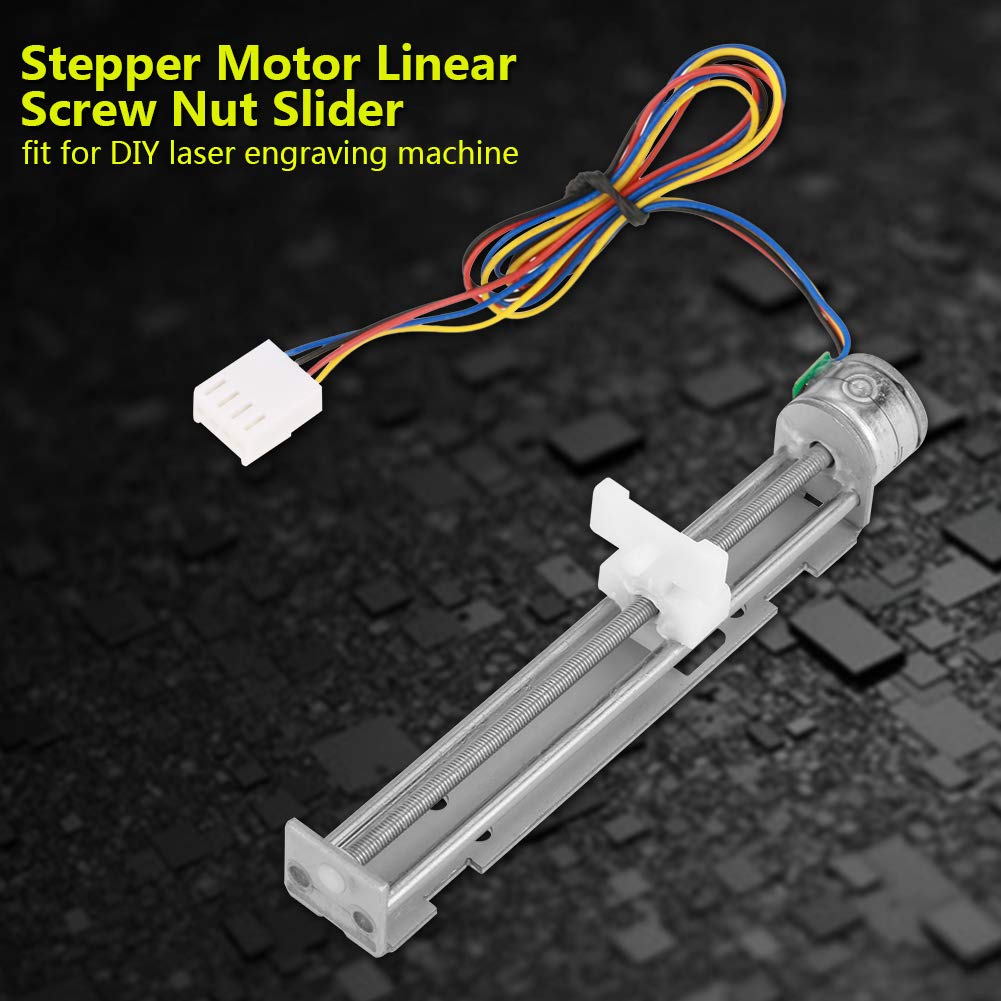

Stepper Motor, D8-MOTOR80 DC12V Moving 0.25mm One Step Stepper Motor with Linear Screw Nut Slider for DIY IR Engraving Machine,etc

Price: $16.95
(as of Nov 26, 2025 16:41:55 UTC – Details)


Features:
brand new and high quality.
Moving 0.25mm for one step, can use microstep driver if need smaller.
The maximum linear speed is 25mm per second.
Widely used for small devices such as medical equipment, IR engraving machine, etc.
The motor need a A4988 driver(not included) to drive, can not directly connect to power.

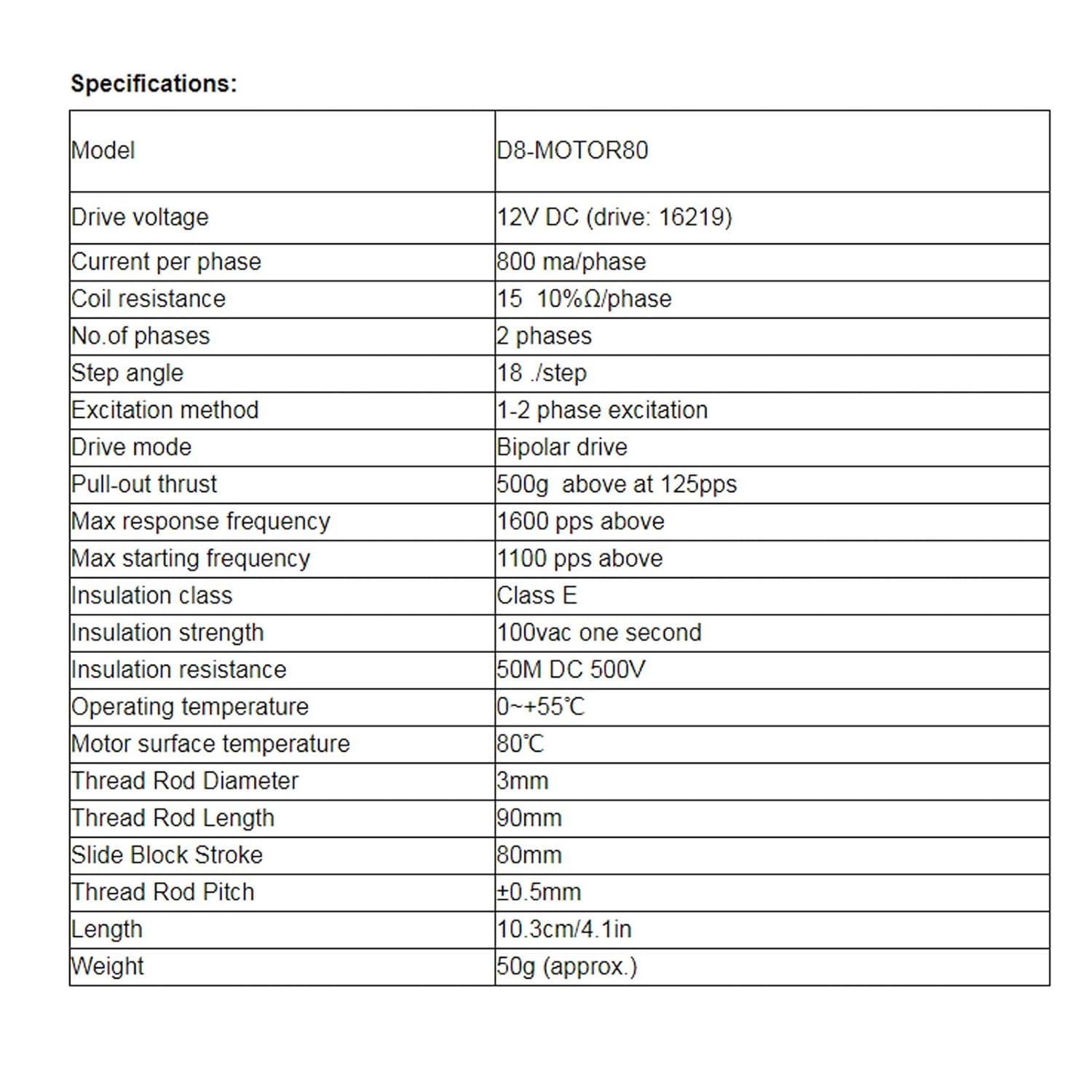

Specifications:

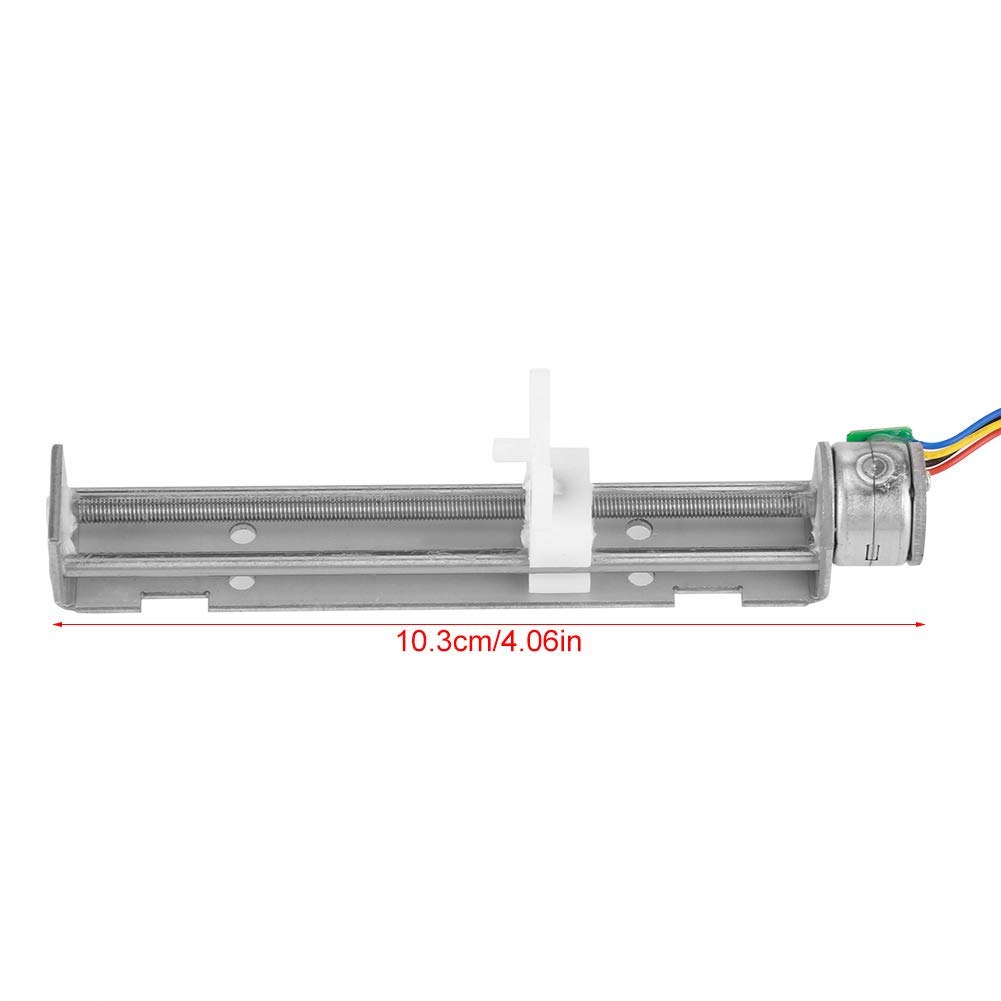

Model D8-MOTOR80 Drive voltage 12V DC (drive: 16219) Current per phase 800 ma/phase Coil resistance 15 10%?/phase No.of phases 2 phases Step angle 18 ./step Excitation method 1-2 phase excitation Drive mode Bipolar drive Pull-out thrust 500g at 125pps response frequency 1600 pps starting frequency 1100 pps Insulation class Class E Insulation strength 100vac one second Insulation 50M DC 500V Operating temperature 0~+55 Motor temperature 80 Thread Rod Diameter 3mm Thread Rod Length 90mm Slide Block Stroke 80mm Thread Rod Pitch ±0.5mm Length 10.3cm/4.1in
Weight 50g (approx.)
Package Includes:

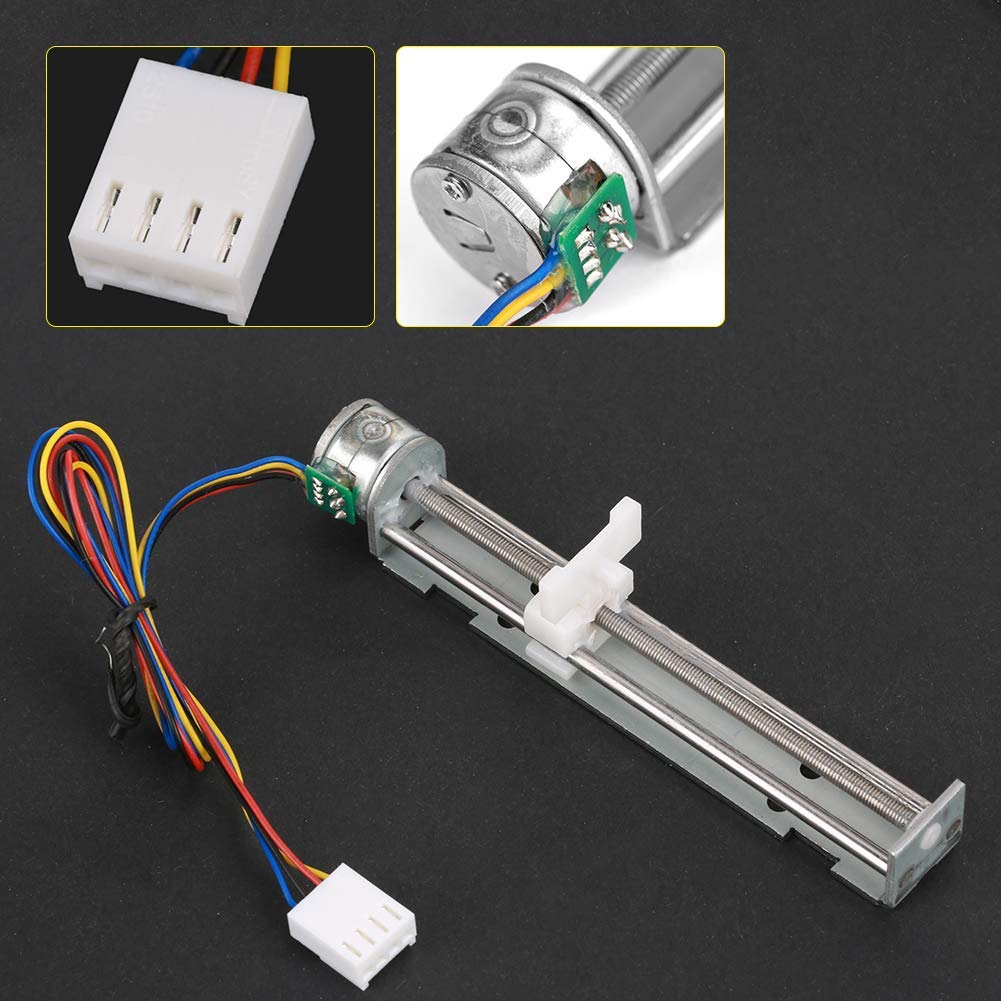

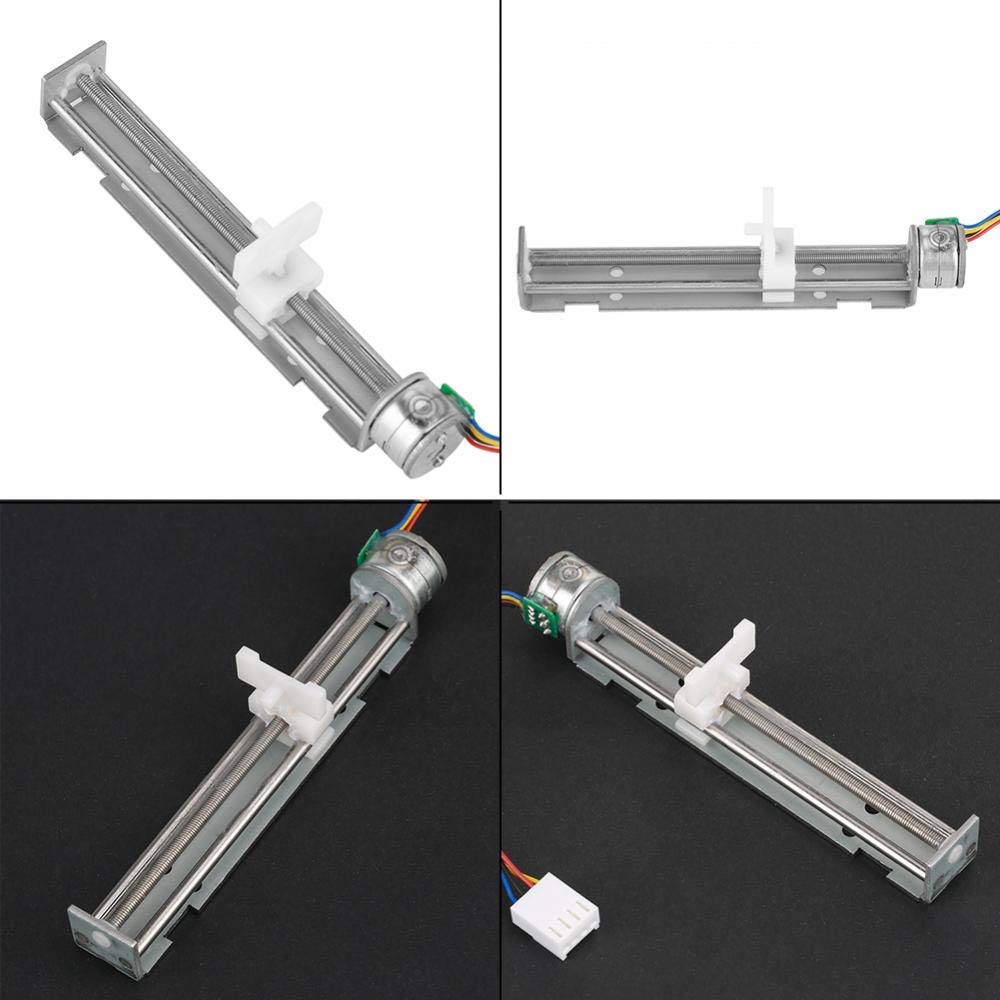

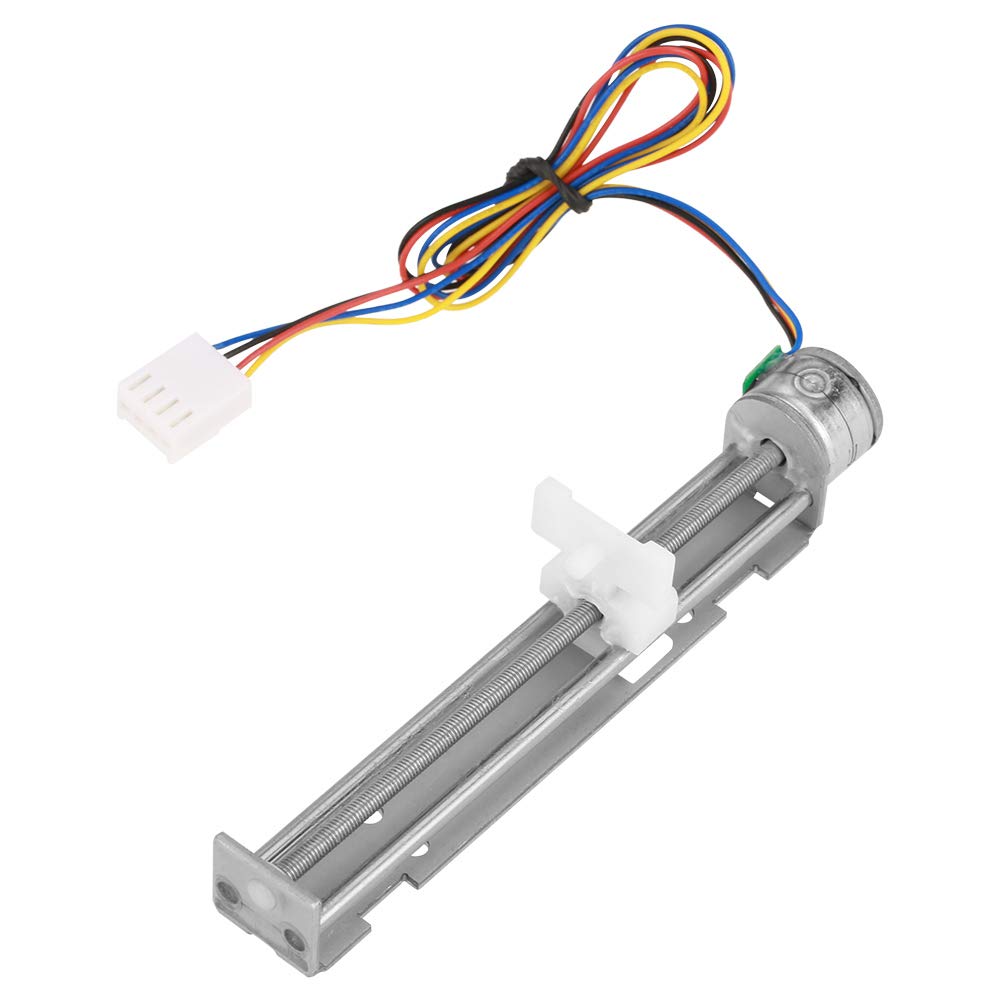

1 x Motor with Linear Slide

Product Dimensions ‏ : ‎ 3.94 x 0.79 x 0.79 inches; 1.59 ounces
Item model number ‏ : ‎ Yanmiskysuwcgtz8
Date First Available ‏ : ‎ July 18, 2019
Manufacturer ‏ : ‎ Yanmis
ASIN ‏ : ‎ B07VHRQV22
Best Sellers Rank: #176,566 in Industrial & Scientific (See Top 100 in Industrial & Scientific) #52 in Motor Drives #75 in 3D Printer Motors
Customer Reviews: 4.1 4.1 out of 5 stars 5 ratings var dpAcrHasRegisteredArcLinkClickAction; P.when(‘A’, ‘ready’).execute(function(A) { if (dpAcrHasRegisteredArcLinkClickAction !== true) { dpAcrHasRegisteredArcLinkClickAction = true; A.declarative( ‘acrLink-click-metrics’, ‘click’, { “allowLinkDefault”: true }, function (event) { if (window.ue) { ue.count(“acrLinkClickCount”, (ue.count(“acrLinkClickCount”) || 0) + 1); } } ); } }); P.when(‘A’, ‘cf’).execute(function(A) { A.declarative(‘acrStarsLink-click-metrics’, ‘click’, { “allowLinkDefault” : true }, function(event){ if(window.ue) { ue.count(“acrStarsLinkWithPopoverClickCount”, (ue.count(“acrStarsLinkWithPopoverClickCount”) || 0) + 1); } }); });
♥ Fine design: This rail and linear block are small and light, especially suitable for small teams. The tool is simple and easy to use, strong and .
♥ Microstep controller: The motor requires an A4988 controller (not included), it cannot be connected directly to the power supply. The maximum linear speed is 25 mm per second. Moving 0.25mm in one step allows you to use a microstep controller in case a smaller one is required.
♥ Applications: widely used for automatic equipment, medical equipment, precision measuring instruments, engraving machines, other small linear slide devices, etc.
♥ Technical data: line voltage 12V DC; Current per phase 800 ma / phase; Temperature 0 ~ + 55 ° C; 80mm block stroke.
♥ Quality service: We attach great importance to our customers and make sure that customers get what they want. We love providing them with excellent customer service. If you have any questions, send us a message.
