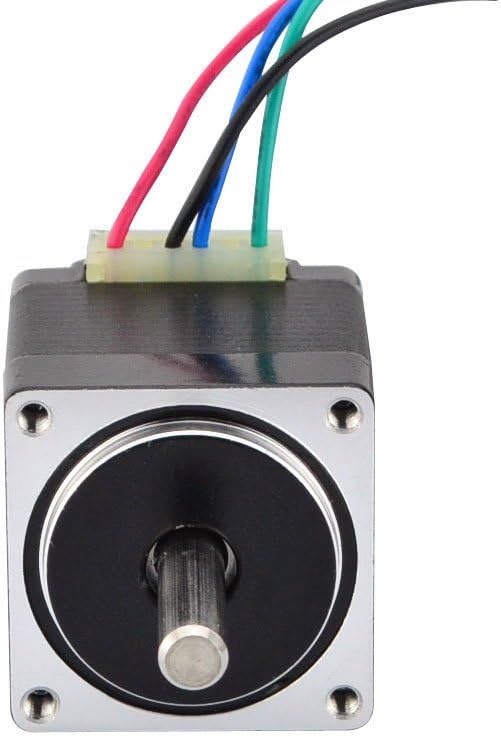

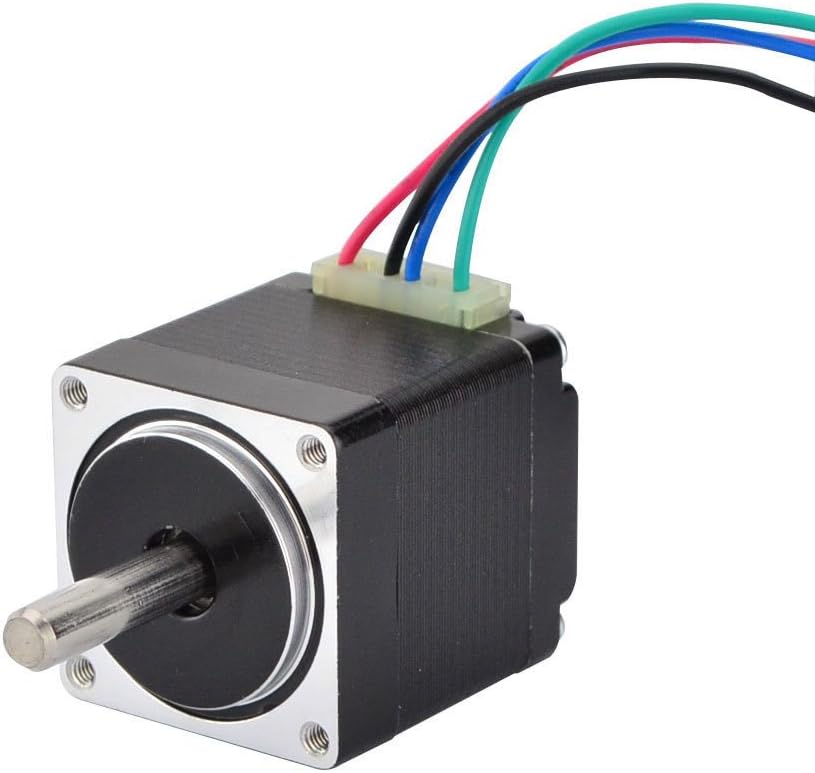

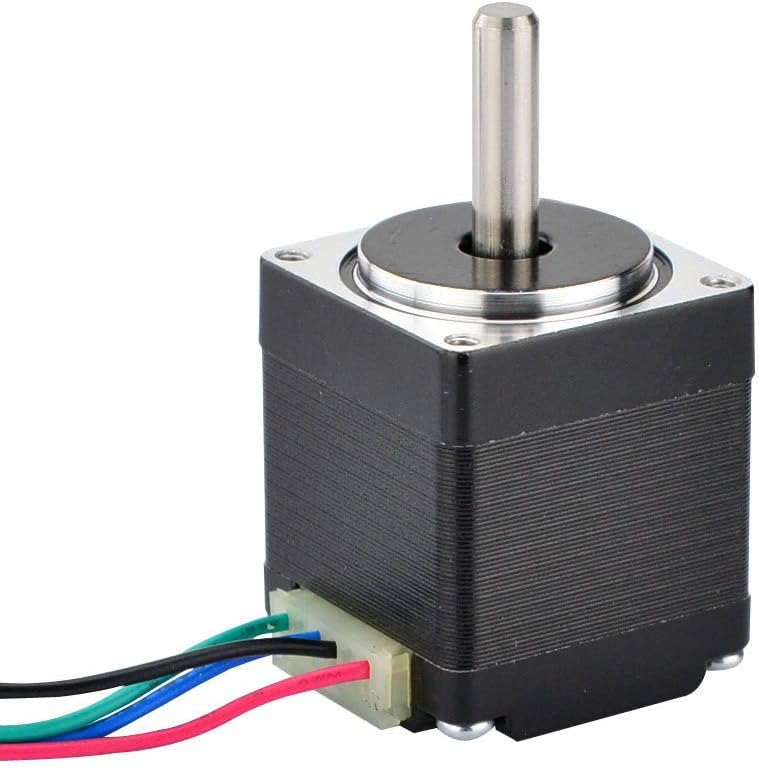

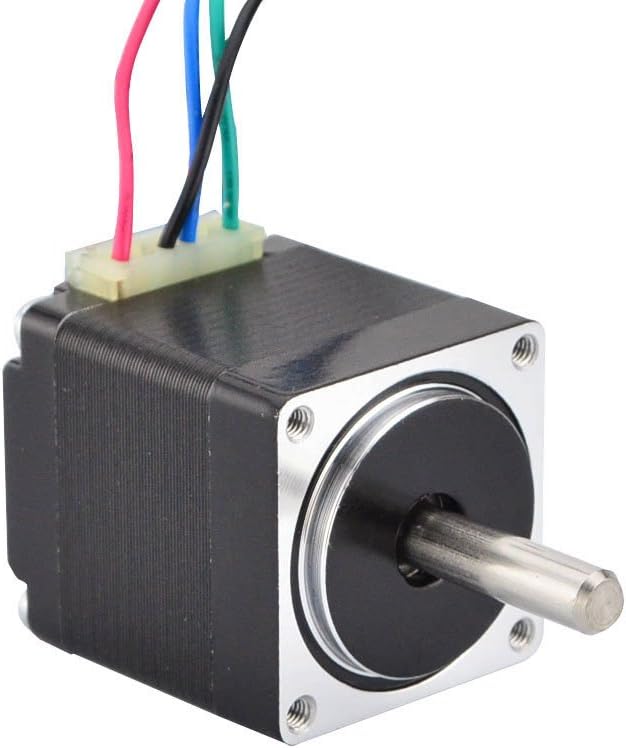

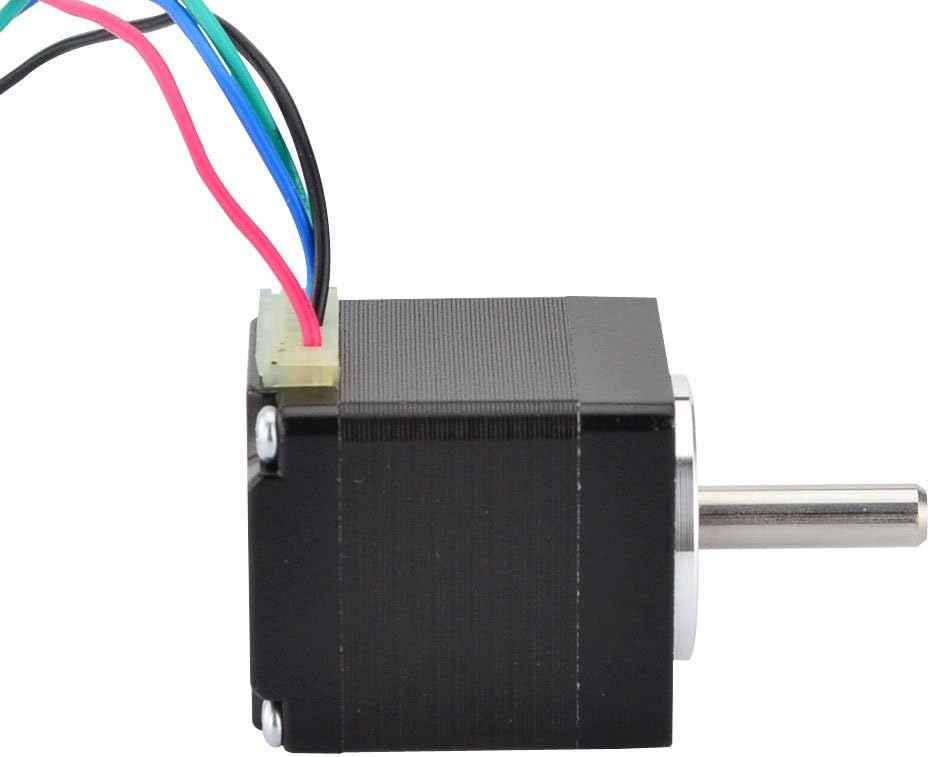

STEPPERONLINE Mini Stepper Motor Nema11 Bipolar 0.67A 8.5oz-in/6Ncm DIY Robot CNC (No Single keyed Shaft)
This hybrid bipolar stepper motor has 1.8 deg. step angle (200 steps/revolution).
Each phase draws 670 mA at 3.8 V, allowing for a holding torque of 6Ncm(8.5oz.in).
Electrical Specification:

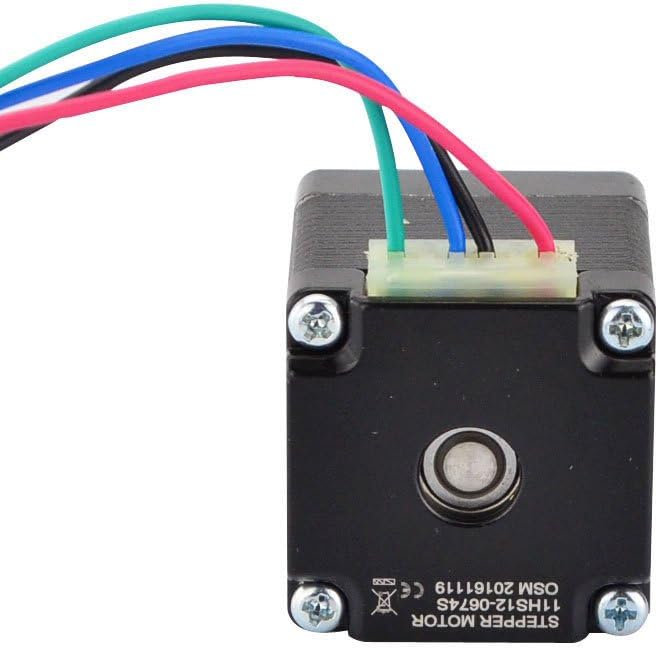

* Manufacturer Part Number: 11HS12-0674S
* Motor Type: Bipolar Stepper
* Step Angle: 1.8 deg.
* Holding Torque: 6Ncm(8.5oz.in)
* Rated Current/phase: 0.67A
* Phase Resistance: 5.6ohms
* Inductance: 42mH+/-20%(1KHz)
Physical Specification:
* Frame Size: 28 x 28mm
* Body Length: 33mm
* Shaft Diameter: 5mm
* Shaft Length: 20mm
* Number of Leads: 4
* Lead Length: 300mm
* Weight: 110g
Connection:
Black(A+), Green(A-), Red(B+), Blue(B-)
Warning:
Make sure the motor connect to a constant current or chopper drive controller before you test motor.
Connecting the motor directly to a power supply will destroy the motor.
Small Size, High Efficient
Bipolar Stepper, holding torque 6 Ncm(8.5 oz.in)
NEMA 11 bipolar 1.1″x1.1″x1.24″ 4-wire(Black, Green, Blue, Red)
1.8 deg. step angle(200 steps/rev),Drive 0.67A
Shaft Diameter Φ5mm, Shaft Length 20mm
$20.57
Price: $20.57
(as of Oct 15, 2025 08:57:29 UTC – Details)
This hybrid bipolar stepper motor has 1.8 deg. step angle (200 steps/revolution).
Each phase draws 670 mA at 3.8 V, allowing for a holding torque of 6Ncm(8.5oz.in).
Electrical Specification:
* Manufacturer Part Number: 11HS12-0674S
* Motor Type: Bipolar Stepper
* Step Angle: 1.8 deg.
* Holding Torque: 6Ncm(8.5oz.in)
* Rated Current/phase: 0.67A
* Phase Resistance: 5.6ohms
* Inductance: 42mH+/-20%(1KHz)
Physical Specification:
* Frame Size: 28 x 28mm
* Body Length: 33mm
* Shaft Diameter: 5mm
* Shaft Length: 20mm
* Number of Leads: 4
* Lead Length: 300mm
* Weight: 110g
Connection:
Black(A+), Green(A-), Red(B+), Blue(B-)
Warning:
Make sure the motor connect to a constant current or chopper drive controller before you test motor.
Connecting the motor directly to a power supply will destroy the motor.
Small Size, High Efficient
Bipolar Stepper, holding torque 6 Ncm(8.5 oz.in)
NEMA 11 bipolar 1.1″x1.1″x1.24″ 4-wire(Black, Green, Blue, Red)
1.8 deg. step angle(200 steps/rev),Drive 0.67A
Shaft Diameter Φ5mm, Shaft Length 20mm
Specification: STEPPERONLINE Mini Stepper Motor Nema11 Bipolar 0.67A 8.5oz-in/6Ncm DIY Robot CNC (No Single keyed Shaft)
|
